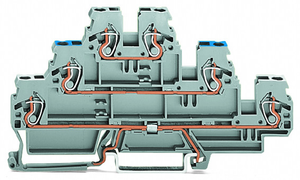

WAGO 870-957/999-950 Triple-Deck Terminal Block, 2.5 mm², Light Gray
Wago
$13.55
Triple-deck terminal block; Ground conductor/through/through terminal block; 2.5 mm²; PE/L/L; suitable for Ex e II applications; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 2,50 mm²; light gray.
The WAGO 870 X-COM series triple-deck terminal block is a light gray feed-through and ground/earthing terminal block with side marking slots, suitable for Ex e II applications. It features "PE/L/L" marking and includes 2 feed-through poles plus a protective-earth (2P+PE) configuration, accommodating 3 x 2-wires (3 clamps + 3 clamps) for wire sizes ranging from 0.08mm² to 4mm² (#28AWG to #12AWG). The terminal block supports a rated current of 24A and utilizes CAGE CLAMP spring connections for secure wiring. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 5mm, equivalent to model 870957999950.
- actuation type:
- Operating tool
- color:
- Light gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 52.5 mm / 2.067 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.08 1.5 mm / 28 14 AWG
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 106 mm / 4.173 inch
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- rated current:
- 24 A
- rated voltage en ex e ii:
- 440 V
- ratings per:
- IEC/EN 60947-7-1
- safety information 1:
- Max. insulation diameter: 4.4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 21.338 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
