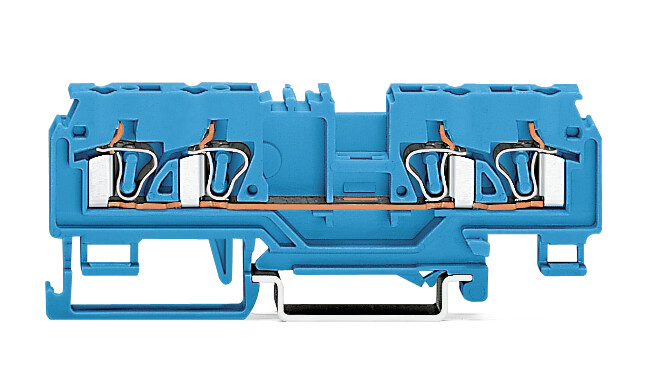

WAGO 880-834/999-940 4-Wire Through Terminal Block with Test Opening, Blue
Wago
$4.21
4-conductor through terminal block4 mm, blue.
The WAGO 880 series neutral-through terminal block is a blue, single-deck component designed for Ex I applications, featuring a center marking slot and a test port. It accommodates four wires (two clamps + two clamps) for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG, and supports a rated current of 20A. The terminal block uses CAGE CLAMP spring connections and is mounted on a DIN-35 rail (35 x 15 / 35 x 7.5) with a 5mm width, equivalent to model 880834999940.
- actuation type:
- Operating tool
- color:
- Blue
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- PL
- depth from upper edge of din rail:
- 29 mm / 1.142 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.175 MJ
- flammability class per ul94:
- V0
- height:
- 87 mm / 3.425 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 800 V
- packaging type:
- Box
- rated current:
- 20 A
- rated surge voltage iii 3:
- 8 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 12.000 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
