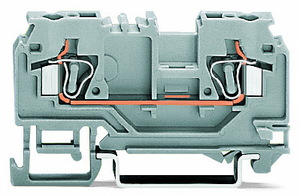

WAGO 880-901/999-940 2-Conductor Through Terminal Block, 4 mm², with Test Port, Center Marking, CAGE CLAMP®, Gray
Wago
$2.60
2-conductor through terminal block; 4 mm²; with test port; without shield contact; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 4,00 mm²; gray.
The WAGO 880 series feed-through terminal block is a gray, single-deck unit with a center marking slot and a test port. It features one feed-through pole and accommodates two wires using CAGE CLAMP spring connections, suitable for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG. The terminal block is rated for a current of 25A and is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 5mm. It is equivalent to the model number 880901999940.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- PL
- depth from upper edge of din rail:
- 29 mm / 1.142 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.120 MJ
- flammability class per ul94:
- V0
- height:
- 58.5 mm / 2.303 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 800 V
- packaging type:
- Box
- rated current:
- 25 A
- rated surge voltage iii 3:
- 8 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 6.473 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
