Stud terminal block; 70 mm; with 2 stud bolts M8; 70,00 mm; beige.

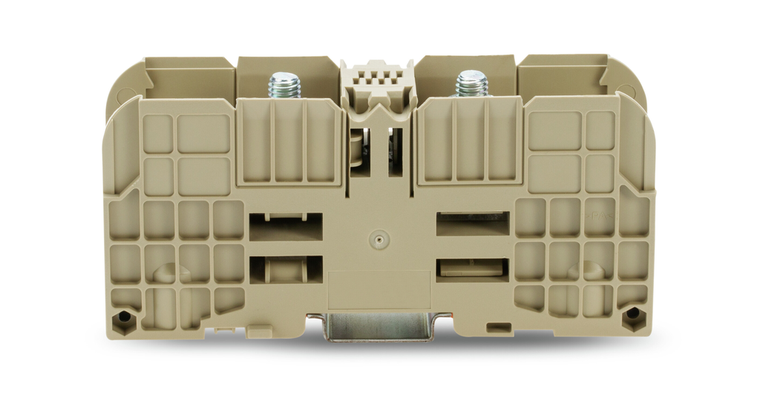

The WAGO 884 series stud feed-through terminal block is a beige, single-deck component designed for DIN-35 rail mounting with a 32mm width. It features one feed-through pole and accommodates two wires with two M8 stud bolts for mechanical lugs or bars. It supports a nominal cross-section of 70mm² and is rated for a current of 192A. This terminal block replaces obsolete components 400-490/490-002 and is equivalent to model 8847000.
- actuation type:
- Open-end, ring, socket wrench: 13 mm
- approvals per:
- UL 1059
- bolt thread:
- M8
- clamping range:
- 2.5 70 mm / 14 3/0 AWG
- color:
- Beige
- connectable conductor materials:
- Copper
- connection technology:
- Bolt-type connection
- continuous operating temperature:
- -40 +120 C
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 61 mm / 2.402 inch
- din46234 1 cable lug per side:
- 2.5 95 mm
- din46235 1 cable lug per side:
- 16 70 mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 132 mm / 5.197 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- mounting type:
- DIN-35 rail || Panel mounting
- nominal cross section:
- 70 mm
- nominal voltage iii 3:
- 1000 V
- packaging type:
- Box
- rated current:
- 192 A
- rated current csa use group b:
- 175 A
- rated current csa use group c:
- 175 A
- rated current csa use group d:
- 175 A
- rated current ul use group b:
- 175 A
- rated current ul use group c:
- 175 A
- rated current ul use group d:
- 175 A
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 1000 V
- rated voltage csa use group c:
- 1000 V
- rated voltage csa use group d:
- 1000 V
- rated voltage ul use group b:
- 1000 V
- rated voltage ul use group c:
- 1000 V
- rated voltage ul use group d:
- 1000 V
- tightening torque:
- 6 12 Nm
- type of cable lugs according to din 46234:
- Cable lugs for solder-free connectionsRing type, without insulating sleeve, for copper conductors
- type of cable lugs according to din 46235:
- Cable lugs for compression connectionsCover plate type for copper conductors
- weight:
- 144.200 g
- width:
- 32 mm / 1.26 inch
