Description
Electrical Data
- Rated voltage (III / 3): 1000 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 150 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: Screw-clamp connection/Studs
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 2.5 50 mm / 14 1/0 AWG
- Total number of connection points: 1
- Total number of potentials: 1
- Type of wiring: Front-entry wiring
Geometrical Data
- Width: 22.8 mm / 0.898 inch
- Height from upper-edge of DIN-35 rail: 56.7 mm / 2.232 inch
- Depth: 67 mm / 2.638 inch
Mechanical Data
- Tightening torque: 6 12 Nm
- Type of mounting: DIN-35 rail
- Marking level: Side marking
Material Data
- Color: gray
- Fire load: 0.537 MJ
- Weight: 46.760 g
Commercial data
- Packaging type: BOX
- Country of origin: CN
- GTIN: 4050821049234
- Customs Tariff No.: 85369095990

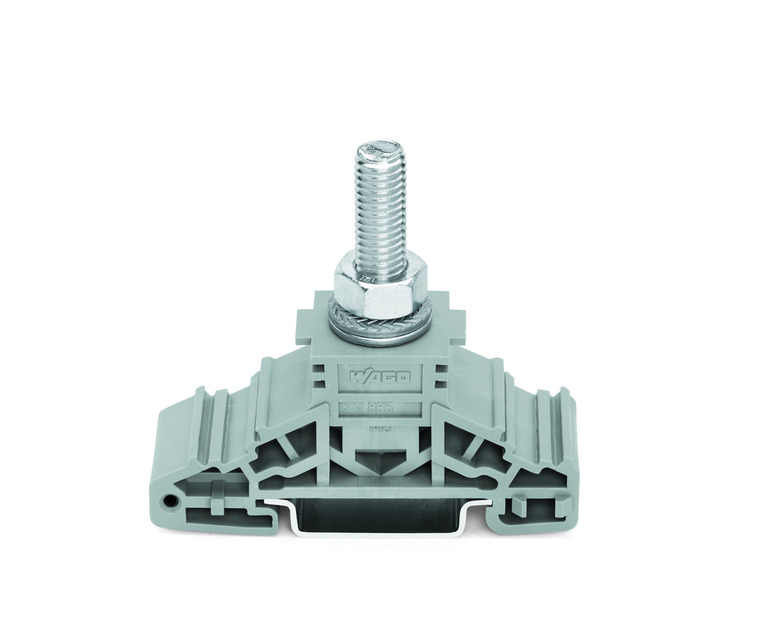

The WAGO 885 series stud feed-through terminal block is a gray, single-deck unit with side marking slots, designed for one feed-through pole and one wire connection. It features a rated current of 150A and includes an M8 stud bolt for mechanical lugs or bars. The terminal block is mounted on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 22.8mm, equivalent to model 885108.
