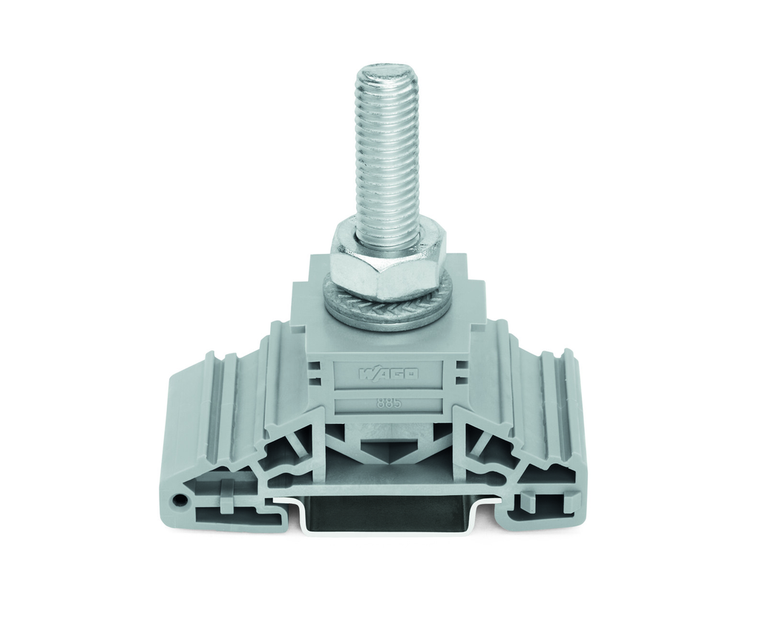

WAGO 885-110 stud terminal block, 269A, 1-pole, M10 stud, DIN-rail mount
Wago
$22.09
Stud terminal block; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; 1 stud, M10; 120,00 mm²; gray.
The WAGO 885 series stud feed-through terminal block is a gray, single-deck unit with side marking slots, designed for one feed-through pole and one wire connection using an M10 stud bolt for mechanical lugs or bars. It supports a rated current of 269A and is mounted on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5 mm, with a width of 33.8 mm. This terminal block is equivalent to model 885110.
- actuation type:
- Open-end, ring, socket wrench: 17 mm
- approvals per:
- C22.2 No 158
- bolt thread:
- M10
- clamping range:
- 6 120 mm / 10 AWG 250 kcmil
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Bolt-type connection
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 66.7 mm / 2.626 inch
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 67 mm / 2.638 inch
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 1000 V
- packaging type:
- Box
- rated current:
- 269 A
- rated surge voltage iii 3:
- 8 kV
- tightening torque:
- 10 20 Nm
- type of cable lugs according to din 46234:
- Cable lugs for solder-free connectionsRing type, without insulating sleeve, for copper conductors
- type of cable lugs according to din 46235:
- Cable lugs for compression connectionsCover plate type for copper conductors
- weight:
- 88.216 g
- width:
- 33.8 mm / 1.331 inch
