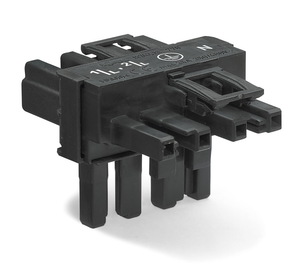

WAGO 890-627 T-distribution connector, 4-pole, Cod. A, black
Wago
$7.31
T-distribution connector; 1 x plug / 2 x socket; 4-pole; for "flying leads"; with 3rd locking lever; 100% protected against mismating; pluggable
- Protected against mismating and maintenance-free
- Compact design with 4.4 mm pole spacing
The WAGO component equivalent to 890627 is a specific part used in electrical and electronic applications, known for its reliability and efficiency. This component is designed to provide secure and maintenance-free connections, often utilized in various industrial and automation settings. It ensures optimal performance and safety, making it a preferred choice for professionals seeking high-quality electrical connectors.
- application:
- General mains applications
- coding:
- A
- color:
- Black
- contact material:
- Copper or copper alloy (surface-treated)
- continuous operating temperature:
- -35 +85 C
- country of origin sales organisation germany:
- DE
- depth:
- 53.9 mm / 2.122 inch
- distributor type:
- T-distribution connector
- fire load:
- 0.038 MJ
- height:
- 39.6 mm / 1.56 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- locking lever:
- Yes
- locking of plug in connection:
- Locking lever
- marking:
- N 2/L 1/L'
- mating force of a plug in connection:
- Approx. 20 70 N (depending on pole number)
- mismating protection:
- Yes
- nominal voltage iii 3:
- 400 V
- note on continuous operating temperature:
- Insulating parts for temperatures ¤ 105 C
- note on mismating protection:
- All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- number of locking levers:
- 3
- number of mating cycles:
- 200, without resistive load
- packaging type:
- Box
- pin spacing:
- 4.4 mm / 0.173 inch
- pole no:
- 4
- processing temperature:
- -5 +40 C
- protection class:
- IP20: IP40 when mated
- rated current:
- 16 A
- rated current ul 1977:
- 0
- rated surge voltage iii 3:
- 6 kV
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- retention force of a plug in connection:
- When locked: > 80 N
- suitable:
- For flying leads
- unmating force of a plug in connection:
- Unlocked: approx. 20 70 N (depending on pole number)
- weight:
- 10.572 g
- width:
- 22.3 mm / 0.878 inch
