Wago

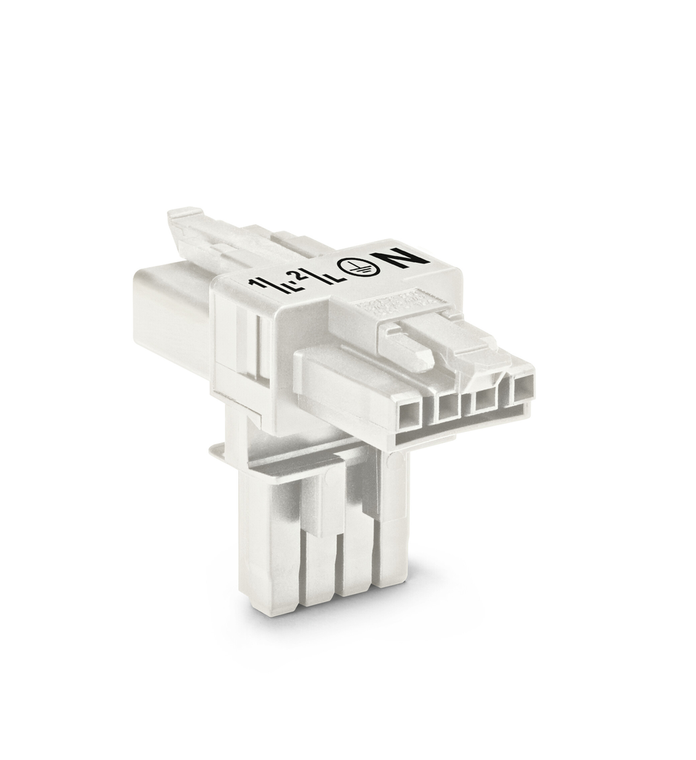

WAGO 890-676

SKU:

890-676

UPC:

MPN:

890-676

Condition:

New

application:

General mains applications

coding:

A

color:

White

contact material:

Copper or copper alloy (surface-treated)

continuous operating temperature:

-35 +85 C

country of origin sales organisation germany:

DE

depth:

53.9 mm / 2.122 inch

distributor type:

T-distribution connector

fire load:

0.024 MJ

height:

34 mm / 1.339 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

locking lever:

Yes

locking of plug in connection:

Locking lever

marking:

N 2/L 1/L'

mating force of a plug in connection:

Approx. 20 70 N (depending on pole number)

mismating protection:

Yes

nominal voltage iii 3:

400 V

note on continuous operating temperature:

Insulating parts for temperatures ¤ 105 C

note on mismating protection:

All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole

number of locking levers:

2

number of mating cycles:

200, without resistive load

packaging type:

Box

pin spacing:

4.4 mm / 0.173 inch

pole no:

4

processing temperature:

-5 +40 C

protection class:

IP20: IP40 when mated

rated current:

16 A

rated current ul 1977:

0

rated surge voltage iii 3:

6 kV

rated voltage ul 1977:

600 V

ratings per:

IEC/EN 60664-1

retention force of a plug in connection:

When locked: > 80 N

unmating force of a plug in connection:

Unlocked: approx. 20 70 N (depending on pole number)

weight:

10.232 g

width:

22.3 mm / 0.878 inch
