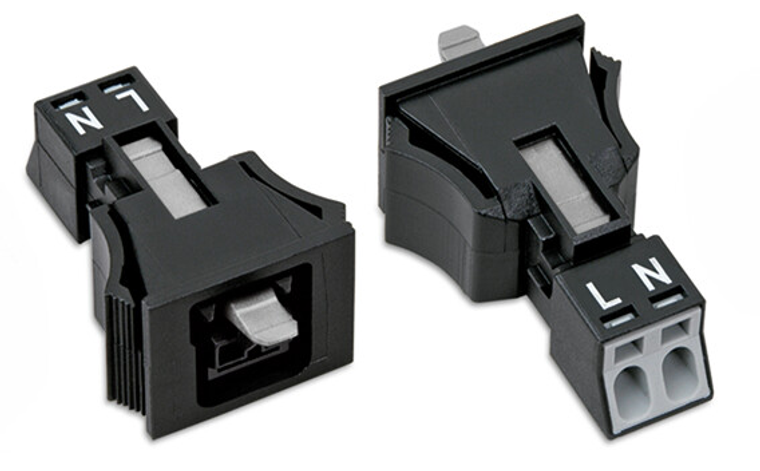

WAGO 890-702 WINSTA MINI 2-Pole Snap-In Through-Panel Socket, Black, Pack of 50
Wago
$129.50
WINSTA through-panel socket (female); MINI; snap-in; L/N marking; 2-pole; black.
The WAGO component equivalent to 890702 is a specific type of electrical connector or terminal block used in various industrial and automation applications. It is designed to provide reliable and secure connections for electrical wiring, ensuring efficient and safe operation of electrical systems. This component is known for its durability, ease of use, and compatibility with a wide range of electrical devices and systems, making it a popular choice among professionals in the field.
- actuation type:
- Operating tool || Push-in
- application:
- General mains applications
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- coding:
- A
- color:
- Black
- conductor entry direction to mating direction:
- 0
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Copper or copper alloy (surface-treated)
- contact type pluggable connector:
- Female connector/socket
- continuous operating temperature:
- -35 +85 C
- country of origin sales organisation germany:
- PL
- depth:
- 39.85 mm / 1.569 inch
- fine stranded conductor:
- 0.25 1.5 mm / 22 16 AWG
- fine stranded conductor with ferrule push in termination:
- 0.75 mm / 20 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 0.75 mm / 22 20 AWG
- fine stranded conductor with uninsulated ferrule:
- 0.25 0.75 mm / 22 20 AWG
- fire load:
- 0.021 MJ
- height:
- 16 mm / 0.63 inch
- housing sheet thickness:
- 0.5 2 mm / 0.02 0.079 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- locking lever:
- Yes
- locking of plug in connection:
- Locking lever
- marking:
- L N
- mating force of a plug in connection:
- Approx. 20 70 N (depending on pole number)
- mismating protection:
- Yes
- mounting type:
- Snap-in
- nominal cross section:
- 1.5 mm
- nominal voltage iii 3:
- 250 V
- note on continuous operating temperature:
- Insulating parts for temperatures ¤ 105 C
- note on mismating protection:
- All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- number of mating cycles:
- 200, without resistive load
- packaging type:
- Box
- pin spacing:
- 4.4 mm / 0.173 inch
- pole no:
- 2
- processing temperature:
- -5 +40 C
- protection class:
- IP40
- rated current:
- 16 A
- rated current ul 1977:
- 14 A
- rated surge voltage iii 3:
- 4 kV
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- retention force of a plug in connection:
- Locked: > 80 N
- solid conductor:
- 0.25 1.5 mm / 22 16 AWG
- solid conductor push in termination:
- 0.75 1.5 mm / 20 16 AWG
- stranded conductor:
- 0.25 1 mm / 22 18 AWG
- strip length:
- 9 mm / 0.35 inch
- unmating force of a plug in connection:
- Unlocked: approx. 20 70 N (depending on pole number)
- weight:
- 4.600 g
- width:
- 19.8 mm / 0.78 inch
