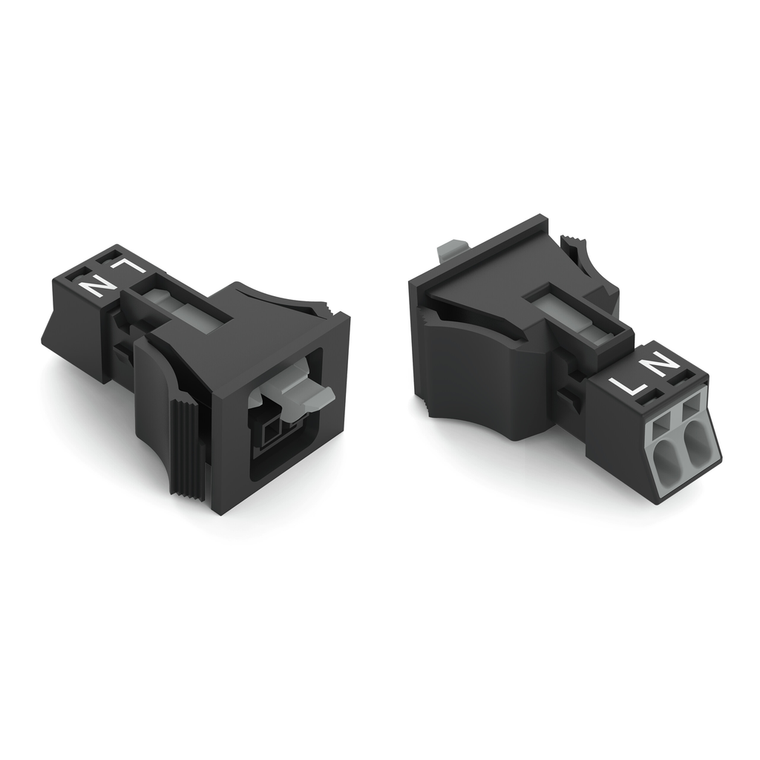

WAGO 890-722 Snap-In Socket Connector, 2-Pole, 16A, 250V, IP40, Pack of 50
Wago
$129.50
- Protected against mismating and maintenance-free
- Push-in CAGE CLAMP spring pressure connection technology allows solid conductors to be simply pushed into a unit
- Compact design with 4.4 mm pole spacing
The WAGO component equivalent to 890722 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and maintenance-free connections. This component is typically used in various industrial applications, including control cabinets, junction boxes, and distribution boards, to facilitate the connection of wires and cables. Its design and functionality are aimed at enhancing the performance and safety of electrical installations, making it a crucial element in modern automation and control systems.
- actuation type:
- Operating tool || Push-in
- application:
- General mains applications
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- coding:
- A
- color:
- White
- conductor entry direction to mating direction:
- 0
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Copper or copper alloy (surface-treated)
- contact type pluggable connector:
- Female connector/socket
- continuous operating temperature:
- -35 +85 C
- country of origin sales organisation germany:
- PL
- depth:
- 39.85 mm / 1.569 inch
- fine stranded conductor:
- 0.25 1.5 mm / 22 16 AWG
- fine stranded conductor with ferrule push in termination:
- 0.75 mm / 20 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 0.75 mm / 22 20 AWG
- fine stranded conductor with uninsulated ferrule:
- 0.25 0.75 mm / 22 20 AWG
- fire load:
- 0.021 MJ
- height:
- 16 mm / 0.63 inch
- housing sheet thickness:
- 0.5 2 mm / 0.02 0.079 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- locking lever:
- Yes
- locking of plug in connection:
- Locking lever
- marking:
- L N
- mating force of a plug in connection:
- Approx. 20 70 N (depending on pole number)
- mismating protection:
- Yes
- mounting type:
- Snap-in
- nominal cross section:
- 1.5 mm
- nominal voltage iii 3:
- 250 V
- note on continuous operating temperature:
- Insulating parts for temperatures ¤ 105 C
- note on mismating protection:
- All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- number of mating cycles:
- 200, without resistive load
- packaging type:
- Box
- pin spacing:
- 4.4 mm / 0.173 inch
- pole no:
- 2
- processing temperature:
- -5 +40 C
- protection class:
- IP40
- rated current:
- 16 A
- rated current ul 1977:
- 14 A
- rated surge voltage iii 3:
- 4 kV
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- retention force of a plug in connection:
- Locked: > 80 N
- solid conductor:
- 0.25 1.5 mm / 22 16 AWG
- solid conductor push in termination:
- 0.75 1.5 mm / 20 16 AWG
- stranded conductor:
- 0.25 1 mm / 22 18 AWG
- strip length:
- 9 mm / 0.35 inch
- unmating force of a plug in connection:
- Unlocked: approx. 20 70 N (depending on pole number)
- weight:
- 4.600 g
- width:
- 19.8 mm / 0.78 inch
