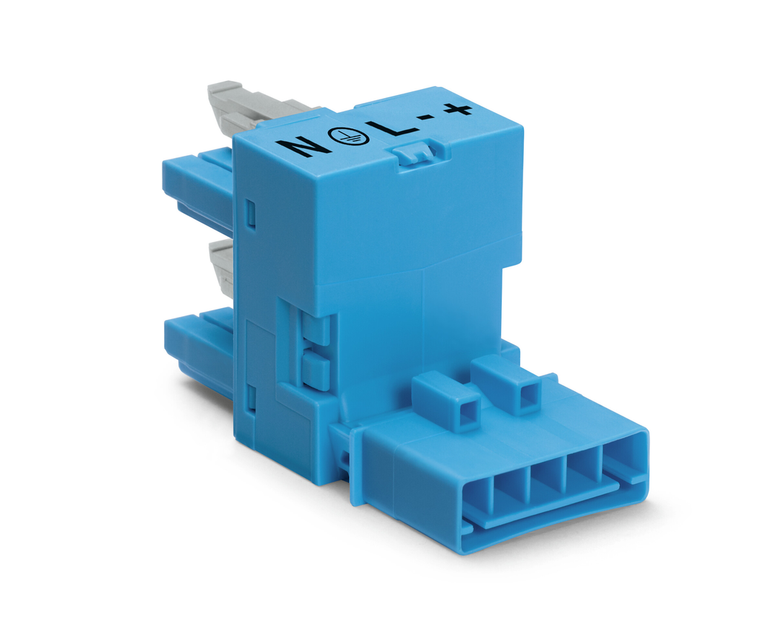

h-distribution connector5-pole Cod. I, blue
- rotected against mismating and maintenance-free
- Compact design with 4.4 mm pole spacing
The WAGO component equivalent to 890982 is a specific part or module used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring seamless integration and performance in various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.
- application:
- DALI, Lighting Management
- coding:
- I
- color:
- Blue
- contact material:
- Copper or copper alloy (surface-treated)
- continuous operating temperature:
- -35 +85 C
- country of origin sales organisation germany:
- DE
- depth:
- 57.85 mm / 2.278 inch
- distributor type:
- H-distribution connector (unidirectional)
- fire load:
- 0.356 MJ
- height:
- 32.65 mm / 1.285 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- locking lever:
- Yes
- locking of plug in connection:
- Locking lever
- marking:
- N L - +
- mating force of a plug in connection:
- Approx. 20 70 N (depending on pole number)
- mismating protection:
- Yes
- nominal voltage iii 3:
- 400 V
- note on continuous operating temperature:
- Insulating parts for temperatures ¤ 105 C
- note on mismating protection:
- All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- number of locking levers:
- 2
- number of mating cycles:
- 200, without resistive load
- packaging type:
- Box
- pin spacing:
- 4.4 mm / 0.173 inch
- pole no:
- 5
- processing temperature:
- -5 +40 C
- protection class:
- IP20: IP40 when mated
- rated current:
- 16 A
- rated current ul 1977:
- 0
- rated surge voltage iii 3:
- 6 kV
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- retention force of a plug in connection:
- When locked: > 80 N
- unmating force of a plug in connection:
- Unlocked: approx. 20 70 N (depending on pole number)
- weight:
- 22.943 g
- width:
- 25.2 mm / 0.992 inch
