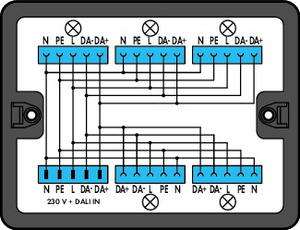

Distribution box Single-pole switch circuit, black.
The WAGO component equivalent to 899631478000 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and maintenance-free connections. This component is typically used in various industrial applications, including machinery, building automation, and process control, to enhance system performance and reliability.
- color:
- Black
- contact material:
- Copper or copper alloy (surface-treated)
- continuous operating temperature:
- -35 +85 C
- country of origin sales organisation germany:
- DE
- depth:
- 145 mm / 5.709 inch
- fire load:
- 11.143 MJ
- height:
- 30 mm / 1.181 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- locking of plug in connection:
- Locking lever
- mismating protection:
- Yes
- mounting type:
- Wall, screw mount || Installation on mounting plate
- note on continuous operating temperature:
- Insulating parts for temperatures ¤ 105 C
- note on mismating protection:
- All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- packaging type:
- Box
- processing temperature:
- -5 +40 C
- protection class:
- IP20: When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
- ratings per:
- IEC/EN 60664-1
- weight:
- 643.592 g
- width:
- 190 mm / 7.48 inch
