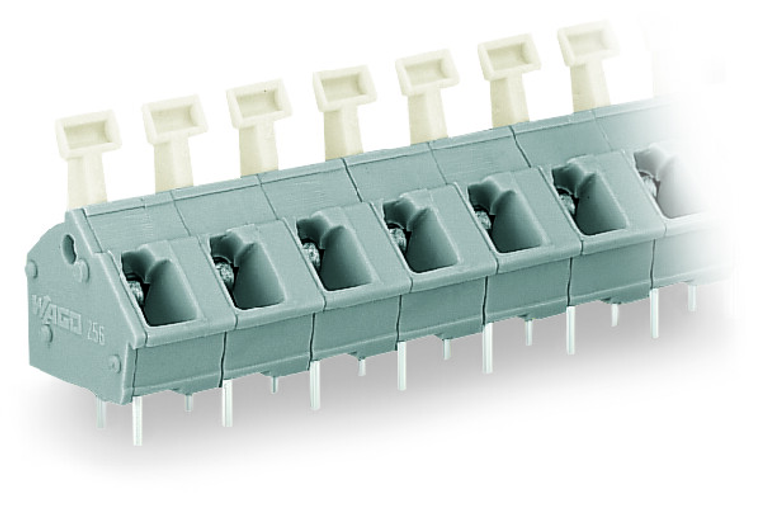

PCB terminal block, push-button 2.5 mm² Pin spacing 7.5/7.62 mm 24-pole, light gray.
The WAGO component equivalent to 256524332009999950 is a specific part or product within the WAGO catalog, which is known for providing electrical interconnection and automation solutions. This component likely serves a particular function in electrical or automation systems, such as connecting wires, facilitating communication between devices, or controlling processes. WAGO components are typically used in various industrial and commercial applications to ensure reliable and efficient operation of electrical systems.
- actuation type:
- Push-button
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- conductor connection direction to pcb:
- 45
- connection technology:
- CAGE CLAMP«
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- depth:
- 17.6 mm / 0.693 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.08 ª 2.5 mm / 28 ª 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 ª 1.5 mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 23.7 mm / 0.933 inch
- height from the surface:
- 18.2 mm / 0.717 inch
- insulation material:
- Polyamide (PA66)
- limit temperature range:
- -60 ª +105 C
- material group:
- I
- note conductor cross section:
- 12 AWG: THHN, THWN
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 7.5/7.62 mm / 0.295/0.3 inch
- pole no:
- 24
- rated current ex e ii:
- 16 A
- rated voltage en ex e ii:
- 275 V
- ratings per:
- ATEX: PTB 06 ATEX 1061 U / IECEx: PTB 06.0042 U
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.7 x 0.7 mm
- solder pin length:
- 5.5 mm
- solid conductor:
- 0.08 ª 2.5 mm / 28 ª 12 AWG
- strip length:
- 5 ª 6 mm / 0.2 ª 0.24 inch
- weight:
- 1.111 g
- width:
- 182.9 mm / 7.201 inch
