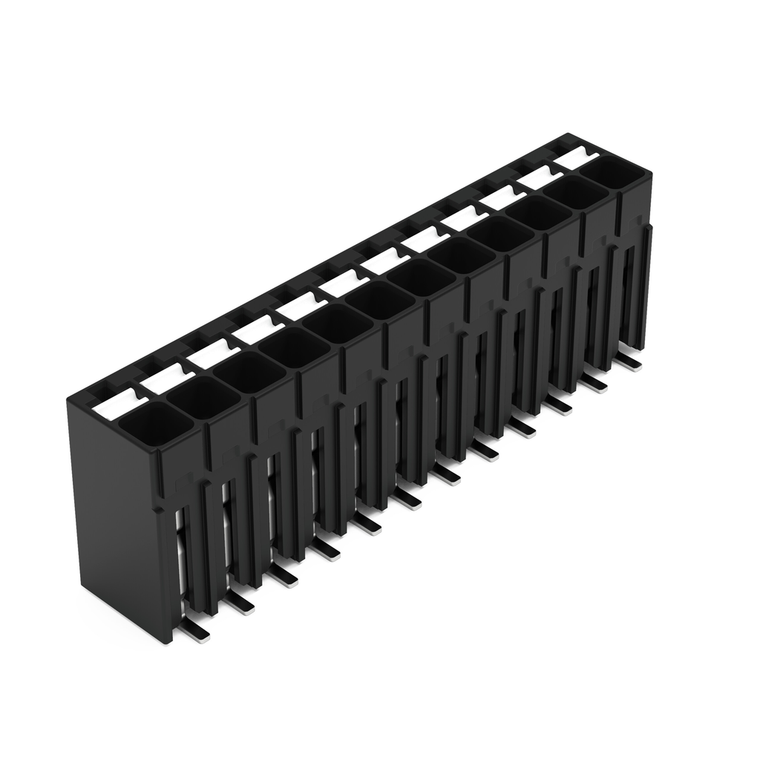

WAGO 2086-1112/700-000/997-607 12-Pole SMD PCB Terminal Block, 3.5mm Pitch, Push-In CAGE CLAMP®, Tape and Reel, Pack of 270
Wago
$1,269.00
SMD PCB terminal block, push-button 1.5 mm² Pin spacing 3.5 mm 12-pole, black.
The WAGO component equivalent to 20861112700000997607 is a specific part or product within the WAGO catalog, likely identified by a unique product number or code. This component is used in various applications, possibly in electrical or automation systems, and is recognized for its compatibility or interchangeability with the specified code. The exact details of its function, specifications, and applications would be found in the WAGO product documentation or catalog.
- actuation type:
- Push-button
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- Color:
- Black
- conductor connection direction to pcb:
- 90
- connection technology:
- Push-in CAGE CLAMP«
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 7.8 mm / 0.307 inch
- fine stranded conductor:
- 0.14 ª 1.5 mm / 24 ª 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 0.75 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 ª 1.5 mm
- fire load:
- 0.003 MJ
- height:
- 13.85 mm / 0.545 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) « Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 ª +105 C
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- SMD
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 12
- rated current:
- 17.5 A
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- reel diameter of tape and reel packaging:
- 380 mm
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solid conductor:
- 0.14 ª 1.5 mm / 24 ª 16 AWG
- strip length:
- 8 ª 9 mm / 0.31 ª 0.35 inch
- tape width:
- 56 mm
- weight:
- 8.029 g
- width:
- 42.7 mm / 1.681 inch
