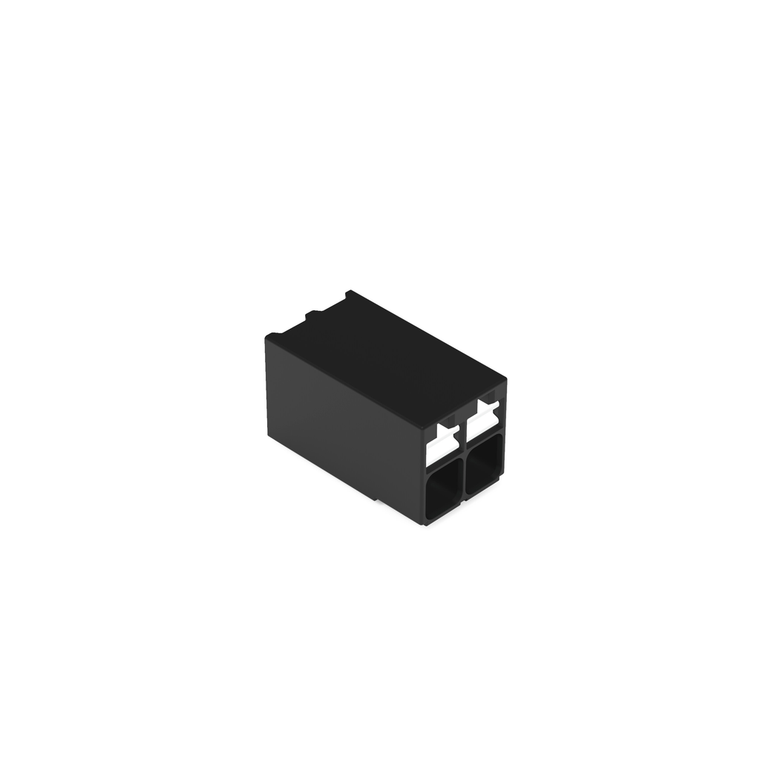

WAGO 2086-1202/700-000/997-604 SMD PCB Terminal Block, 2-Pole, 1.5 mm², 3.5 mm Pin Spacing, Push-in CAGE CLAMP®, Black, Pack of 515
Wago
$726.15
SMD PCB terminal block; push-button; 1.5 mm²; Pin spacing 3.5 mm; 2-pole; Push-in CAGE CLAMP; 1,50 mm²; black.
The WAGO component equivalent to 20861202700000997604 is a specific part or module used in electrical and automation systems. WAGO is known for producing high-quality components such as terminal blocks, relays, and connectors that are essential for various industrial applications. This particular component is likely to be part of their extensive product line designed to ensure reliable and efficient electrical connections and automation solutions.
- actuation type:
- Push-button
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- Color:
- Black
- conductor connection direction to pcb:
- 0
- connection technology:
- Push-in CAGE CLAMP«
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 13.6 mm / 0.535 inch
- fine stranded conductor:
- 0.14 ª 1.5 mm / 24 ª 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 0.75 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 ª 1.5 mm
- fire load:
- 0.000 MJ
- height:
- 8.15 mm / 0.321 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) « Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 ª +105 C
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- SMD
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 2
- rated current:
- 17.5 A
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- reel diameter of tape and reel packaging:
- 380 mm
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solid conductor:
- 0.14 ª 1.5 mm / 24 ª 16 AWG
- strip length:
- 8 ª 9 mm / 0.31 ª 0.35 inch
- tape width:
- 24 mm
- weight:
- 1.865 g
- width:
- 7.7 mm / 0.303 inch
