| Part Number Description: | HIGH VACUUM VALVE | |
| Product Line: | Z | |
| Product Line Description: | VACUUM SERIES | |
| Family Code: | 686 | |
| Family Description: | XLG HIGH VACUUM VALVE | |
| Class Code: | 2X | |
| Part Code: | 1 | |
| Reference Code: | L | |
| PDF Documentation: |  Datasheet | |

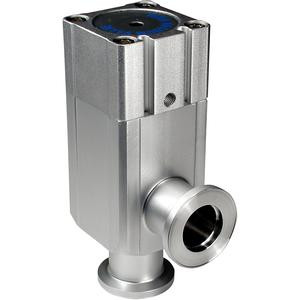

Image may not be accurate, nor match this exact part number
- Valve Type:
- Double Acting, O-ring Seal
- Flange Size:
- 25
- Flange Type:
- NW
- Port Direction:
- w/o Indicator, Flange Side, Std. Indicator, Flange Side
- Temperature:
- 5 to 60°C
- Flange Size Specification:
- Not Applicable
- Auto Switch:
- w/o Auto Switch and w/o Built-in Magnet
- Lead Wire:
- Or None in the Case of No Auto Switch
- Non-standard Indicator:
- Standard
- Body Surface Treatment:
- Standard: External - Hard Anodized, Internal - Raw Material
- Seal Material:
- 1349-80
