XLW Prime Series Controllers

The Horner Automation XLW Prime series is a family of 7-inch all-in-one OCS controllers that combine PLC logic, an HMI touchscreen, built-in I/O, and networking in one panel-mount unit. Every model runs a 1 MB logic engine at a 0.02 mS/K scan on 100% non-volatile system-on-module memory. The XLW Prime is the current successor to the discontinued EXLW series and accepts existing Cscape applications without redevelopment.

Model lineup

Model Built-in I/O
HE-XPLWE0 No built-in I/O
HE-XPLWE2 12 DC inputs, 6 relay outputs, 4 x 12-bit analog inputs
HE-XPLWE3 12 DC inputs, 12 DC outputs, 2 x 12-bit analog inputs
HE-XPLWE4 24 DC inputs, 16 DC outputs, 2 x 12-bit analog inputs
HE-XPLWE5 12 DC inputs, 12 DC outputs, 2 x 14/16-bit universal analog inputs (mA/V/Tc/mV/RTD), 2 x 12-bit analog outputs

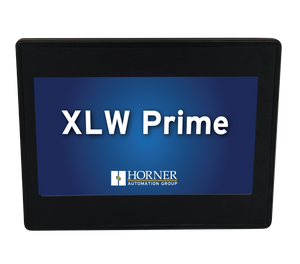

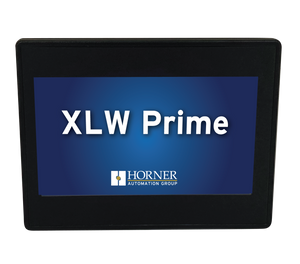

HE-XPLWE6 12 DC inputs, 12 DC outputs, 6 x 14/17-bit universal analog inputs (mA/V/Tc/mV/RTD), 4 x 12-bit analog outputs

Option extensions include thermistor inputs (-10, -14), Enhanced IEC (-442), MQTT (-445), and screw-type terminals (-602). Automation Distribution is an authorized Horner Automation distributor; call 1-888-600-3080 for configuration help.
