SMC ZPR32BU-08-B8 ZPR Series Vacuum Pad Lateral Vacuum Entry With One-touch Fitting Without Buffer

SMC ZPR32BU-08-B8 ZPR Series Vacuum Pad Lateral Vacuum Entry With One-touch Fitting Without Buffer

SMC
SKU:
ZPR32BU-08-B8
Availability:
Contact us to confirm availability and lead times.
$25.05
Condition:
New
Current Stock:
Description

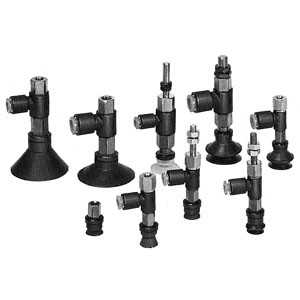

ZPR Series Vacuum Pad Lateral Vacuum Entry With One-touch Fitting Without Buffer

  • 12 sizes, 6 types of pad forms The mounting bracket; can be selected according to the application.;
  • Pad form: Flat type, Flat type with ribs, Bellows type,Thin flat type, Thin flat type with ribs, Deep type;
  • Mounting: Male thread, Female thread;
  • Vacuum inlet direction: Vertical, Lateral;
  • Vacuum inlet: Male thread, Female thread, One-touch fitting, Barb fitting;
  • Buffer: Without, With; [Buffer stroke [mm]: 6, 10, 15, 20, 25, 30, 40, 50]
    • Additional Information
    Pad Diameter:
    32 mm
    Pad Type:
    Bellows
    Material:
    Urethane Rubber
    Vacuum Inlet:
    8 Tube One-touch Fitting
    Mounting Thread:
    M8X1.25 Female Thread
