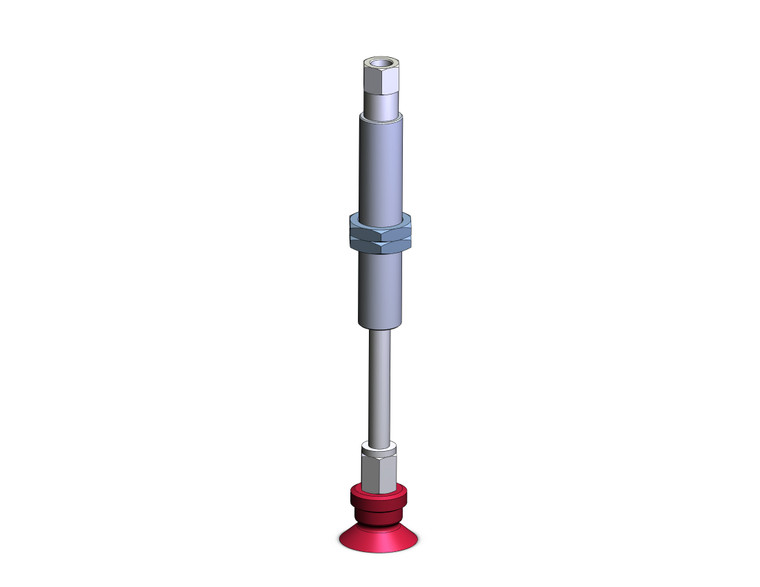

SMC ZPT16CNJ30-B5-A10 Vacuum Pad, With Buffer

SMC ZPT16CNJ30-B5-A10 ZP Series Vacuum Pads/Basic Pad Flat Type With Ribs With Buffer

SMC
SKU:
ZPT16CNJ30-B5-A10
Availability:
Factory stock
$28.35
Condition:
New
Current Stock:
Description

ZP Series Vacuum Pads/Basic Pad Flat Type With Ribs With Buffer

  • 12 sizes, 6 types of pad forms The mounting bracket;?can be selected according to the application.;
  • Pad form: Flat type, Flat type with ribs, Bellows type,Thin flat type, Thin flat type with ribs, Deep type;
  • Mounting: Male thread, Female thread;
  • Vacuum inlet direction: Vertical, Lateral;
  • Vacuum inlet: Male thread, Female thread, One-touch fitting, Barb fitting;
  • Buffer: Without, With;?[Buffer stroke [mm]: 6, 10, 15, 20, 25, 30, 40, 50]
    • Additional Information
    Vacuum Inlet Direction:
    Vertical
    Pad Diameter:
    ?16 mm
    Pad Form:
    Flat With Ribs
    Material:
    NBR
    Buffer Specification:
    Rotating
    Buffer Stroke (mm):
    30 mm
    Vacuum Inlet:
    M5X0.8 Female Thread
    Connection:
    M10X1 Male Thread
