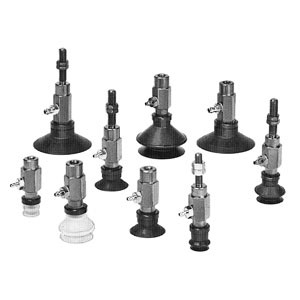

SMC ZPY13BS-N6-A5 ZPY Series Vacuum Pad Lateral Vacuum Entry With Barb Fitting Without Buffer

SMC ZPY13BS-N6-A5 ZPY Series Vacuum Pad Lateral Vacuum Entry With Barb Fitting Without Buffer

SMC
SKU:
ZPY13BS-N6-A5
Availability:
Factory stock
$13.55
Condition:
New
Current Stock:
Description

ZPY Series Vacuum Pad Lateral Vacuum Entry With Barb Fitting Without Buffer

  • 12 sizes, 6 types of pad forms The mounting bracket; can be selected according to the application.;
  • Pad form: Flat type, Flat type with ribs, Bellows type,Thin flat type, Thin flat type with ribs, Deep type;
  • Mounting: Male thread, Female thread;
  • Vacuum inlet direction: Vertical, Lateral;
  • Vacuum inlet: Male thread, Female thread, One-touch fitting, Barb fitting;
  • Buffer: Without, With; [Buffer stroke [mm]: 6, 10, 15, 20, 25, 30, 40, 50]
    • Additional Information
    Pad Diameter:
    13 mm
    Pad Type:
    Bellows
    Material:
    Silicone Rubber
    Vacuum Inlet:
    6 Nylon Tube Barb Fitting
    Mounting Thread:
    M5X0.8 Male Thread
