30 mm Pushbuttons, Switches, Pilots Lights
-
Schneider Electric 9001KR25RH6 Push Button 600Vac 10A 30Mm T-K
Schneider Electric
$168.00This Harmony 9001K, modular red push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape and 57mm mushroom head and 1 x NC contact. This 57mm mushroom shaped push button head is ideal for...- SKU:
- 9001KR25RH6
- Nema Degree Of Protection:
- NEMA 1/2/3/3R/4/6/12/13
- Range Of Product:
- Harmony 9001K
- Type of Operator:
- spring return
- Warranty:
- 18 months
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Operator Profile:
- red mushroom à 57 mm
- Operator Profile:
- mushroom à 57 mm
- Mounting Diameter:
- 30 mm
- Light Block Supply:
- without supply
- Operator Additional Information:
- screw-on plastic with set screw
- Product Or Component Type:
- push-button
- Environmental Disclosure:
- ENVPEP121006EN
- Mercury Free:
- Yes
- China Rohs Regulation:
- X
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Contact Operation:
- standard
- Device Short Name:
- K
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Size:
- 30 mm
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Certifications:
- NEMA || UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03 || CE
- Contacts Type And Composition:
- 1 NC
- Cap/Operator Or Lens Colour:
- red
- Device Presentation:
- complete product
- Circularity Profile:
- N/A
- [Ie] Rated Operational Current:
- 10 A, AC-15 || 10 A, DC-13
- Light Source:
- without
- Sustainable Offer Status:
- Green Premium product
- Connections - Terminals:
- screw clamp terminals
- Bezel Material:
- metal
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
$168.00 -
Schneider Electric 9001KR1UH2 Push Button 600Vac 10A 30Mm T-K
Schneider Electric
$138.00The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and...- SKU:
- 9001KR1UH2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Or Component Type:
- push-button
- Cap/Operator Or Lens Colour:
- 7 colours choice
- Operator Profile:
- white projecting || orange projecting || black projecting || red projecting || green projecting || yellow projecting || blue projecting
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP121006EN
- Device Short Name:
- K
- Range Of Product:
- Harmony 9001K
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Contact Operation:
- standard
- Circularity Profile:
- N/A
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Size:
- 30 mm
- Bezel Material:
- metal
- Operator Profile:
- flush
- Device Presentation:
- complete product
- Light Source:
- without
- Sustainable Offer Status:
- Green Premium product
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation:
- X
- Type Of Operator:
- spring return
- Product Certifications:
- NEMA || CSA LR 25490 class 3211 03 || UL listed file E42259 CCN NKCR || CE
- Light Block Supply:
- without supply
- Warranty:
- 18 months
- Operator Additional Information:
- metal guard
- Mercury Free:
- Yes
- [Ie] Rated Operational Current:
- 10 A, AC-15 || 10 A, DC-13
- Mounting Diameter:
- 30 mm
- Nema Degree Of Protection:
- NEMA 1/2/3/3R/4/6/12/13
- Contacts Type And Composition:
- 2 C/O
- Catalog:
- View
- Datasheet:
- View
$138.00 -
Schneider Electric 9001KR9H13 Push Button 600Vac 10A 30Mm T-K
Schneider Electric
$178.00The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and...- SKU:
- 9001KR9H13
- Environmental Disclosure:
- ENVPEP121006EN
- Rohs Exemption Information:
- Yes
- Type Of Operator:
- push-pull
- Device Presentation:
- complete product
- Device Short Name:
- K
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mounting Diameter:
- 30 mm
- Warranty:
- 18 months
- Light Source:
- without
- Contact Operation:
- standard
- Product Certifications:
- UL listed file E42259 CCN NKCR || CE || CSA LR 25490 class 3211 03 || NEMA
- Sustainable Offer Status:
- Green Premium product
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Bezel Material:
- metal
- Range Of Product:
- Harmony 9001K
- Cap/Operator Or Lens Colour:
- without mushroom
- Nema Degree Of Protection:
- NEMA 1/2/3/3R/4/6/12/13
- China Rohs Regulation:
- X
- Light Block Supply:
- without supply
- [Ie] Rated Operational Current:
- 10 A, AC-15 || 10 A, DC-13
- Circularity Profile:
- N/A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Contacts Type And Composition:
- 1 C/O
- Operator Position Information:
- 2 positions
- Product Or Component Type:
- push-button
- Size:
- 30 mm
- Mercury Free:
- Yes
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
$178.00 -
Schneider Electric 9001KR2BH5 Push Button 600Vac 10A 30Mm T-K
Schneider Electric
$99.00This Harmony 9001K, modular recessed black push button with extended guard has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, has 1 x NO contact and uses screw-clamp terminals. This recessed push button with...- SKU:
- 9001KR2BH5
- Device Short Name:
- K
- Size:
- 30 mm
- Product Certifications:
- UL listed file E42259 CCN NKCR || CE || NEMA || CSA LR 25490 class 3211 03
- Connections - Terminals:
- screw clamp terminals
- China Rohs Regulation:
- X
- [Ie] Rated Operational Current:
- 10 A, AC-15 || 10 A, DC-13
- Rohs Exemption Information:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Device Presentation:
- complete product
- Type of Operator:
- spring return
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Bezel Material:
- metal
- Cap/Operator Or Lens Colour:
- black
- Mounting Diameter:
- 30 mm
- Product Or Component Type:
- push-button
- Light Source:
- without
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Contact Operation:
- standard
- Light Block Supply:
- without supply
- Operator Profile:
- recessed
- Operator Additional Information:
- metal guard
- Mercury Free:
- Yes
- Nema Degree Of Protection:
- NEMA 1/2/3/3R/4/6/12/13
- Warranty:
- 18 months
- Circularity Profile:
- N/A
- Range Of Product:
- Harmony 9001K
- Contacts Type And Composition:
- 1 NO
- Environmental Disclosure:
- ENVPEP121006EN
- Operator Profile:
- black recessed
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
$99.00 -

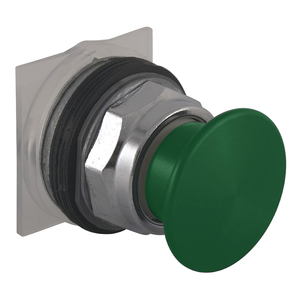

Schneider Electric 9001KR25GM Momentary Push Button
Schneider Electric
$101.00This 60mm mushroom shaped push-button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance...- SKU:
- 9001KR25GM
- Protective Treatment:
- TC
- Net Weight:
- 0.15 kg
- Device Presentation:
- basic element
- Overvoltage Category:
- class II IEC 61140
- Product Compatibility:
- contact block 9001KA..
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
- Range Of Product:
- Harmony 9001K
- China Rohs Regulation:
- X
- Product Or Component Type:
- head for push-button
- Device Short Name:
- 9001K
- Ambient Air Temperature For Storage:
- -40-70 °C
- Shape Of Signaling Unit Head:
- round
- Sustainable Offer Status:
- Green Premium product
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Rohs Exemption Information:
- Yes
- Mechanical Durability:
- 5000000 cycles
- Size:
- 30 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP66 IEC 60529
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Contacts Type And Composition:
- without contact block
- Operator Profile:
- mushroom à 60 mm
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Operator Profile:
- green mushroom à 60 mm, unmarked
- Standards:
- IEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
- Mounting Diameter:
- 30 mm
- Operator Additional Information:
- screw-on metal with set screw
- Cad Overall Height:
- 60 mm
- Head Material:
- metal
- Bezel Material:
- metal
- Ambient Air Temperature For Operation:
- -25-70 °C
- Product Certifications:
- UL 508 || NEMA
- Environmental Disclosure:
- ENVPEP121006EN
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- N/A
- Warranty:
- 18 months
- Cad Overall Depth:
- 70 mm
- Cap/Operator Or Lens Colour:
- green
- Mercury Free:
- Yes
- Cad Overall Width:
- 60 mm
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
$101.00 -
Schneider Electric 9001KR9BM94 2 Position Push Pull
Schneider Electric
$138.00Push-button head, Harmony 9001K, metal, metal mushroom 40mm, black, 30mm, 2 positions, push-pull- SKU:
- 9001KR9BM94
- Device Presentation:
- basic element
- Rohs Exemption Information:
- Yes
- Operator Position Information:
- 2 positions
- Environmental Disclosure:
- ENVPEP121006EN
- Warranty:
- 18 months
- Cap/Operator Or Lens Colour:
- black
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Ambient Air Temperature For Storage:
- -40-70 °C
- Sustainable Offer Status:
- Green Premium product
- Overvoltage Category:
- class II IEC 61140
- Mechanical Durability:
- 5000000 cycles
- Contacts Type And Composition:
- without contact block
- Product Certifications:
- UL 508 || NEMA
- Operator Profile:
- mushroom à 40 mm
- Cad Overall Width:
- 45.5 mm
- Operator Additional Information:
- screw-on metal with set screw
- Cad Overall Depth:
- 74 mm
- Head Material:
- metal
- Protective Treatment:
- TC
- Shape Of Signaling Unit Head:
- round
- Circularity Profile:
- N/A
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ambient Air Temperature For Operation:
- -25-70 °C
- China Rohs Regulation:
- X
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Compatibility:
- contact block 9001KA..
- Device Short Name:
- 9001K
- Bezel Material:
- metal
- Net Weight:
- 0.141 kg
- Cad Overall Height:
- 45 mm
- Standards:
- IEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
- Size:
- 30 mm
- Ip Degree Of Protection:
- IP66 IEC 60529
- Mounting Diameter:
- 30 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Operator Profile:
- black mushroom à 40 mm, unmarked
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
- Range Of Product:
- Harmony 9001K
- Product Or Component Type:
- head for push-button
- Mercury Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
$138.00 -
Schneider Electric 9001KR25Y Pushbutton Operator 30Mm Type K +Options
Schneider Electric
$81.00Push-button head, Harmony 9001K, metal, mushroom 57mm, yellow, 30mm, spring return- SKU:
- 9001KR25Y
- Cap/Operator Or Lens Colour:
- yellow
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Circularity Profile:
- N/A
- Bezel Material:
- metal
- Type Of Operator:
- spring return
- Shape Of Signaling Unit Head:
- round
- Sustainable Offer Status:
- Green Premium product
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operator Additional Information:
- screw-on plastic with set screw
- China Rohs Regulation:
- X
- Mounting Diameter:
- 30 mm
- Operator Profile:
- mushroom à 57 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Operator Profile:
- yellow flush
- Device Short Name:
- 9001K
- Contacts Type And Composition:
- without contact block
- Environmental Disclosure:
- ENVPEP121006EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Product Or Component Type:
- head for push-button
- Range Of Product:
- Harmony 9001K
- Brochure:
- View
- Datasheet:
- View
$81.00 -
Schneider Electric 9001KR25RM Momentary Push Button
Schneider Electric
$101.00Push-button head, Harmony 9001K, metal, metal mushroom 60mm, red, 30mm, spring return- SKU:
- 9001KR25RM
- Contacts Type And Composition:
- without contact block
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Head Material:
- metal
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mounting Diameter:
- 30 mm
- Product Compatibility:
- contact block 9001KA..
- Device Presentation:
- basic element
- Warranty:
- 18 months
- Range Of Product:
- Harmony 9001K
- Product Or Component Type:
- head for push-button
- Bezel Material:
- metal
- Ambient Air Temperature For Operation:
- -25-70 °C
- China Rohs Regulation:
- X
- Operator Additional Information:
- screw-on metal with set screw
- Protective Treatment:
- TC
- Size:
- 30 mm
- Mechanical Durability:
- 5000000 cycles
- Overvoltage Category:
- class II IEC 61140
- Cap/Operator Or Lens Colour:
- red
- Mercury Free:
- Yes
- Device Short Name:
- 9001K
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Operator Profile:
- mushroom à 60 mm
- Cad Overall Width:
- 60 mm
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Ip Degree Of Protection:
- IP66 IEC 60529
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- N/A
- Product Certifications:
- NEMA || UL 508
- Operator Profile:
- red mushroom à 60 mm, unmarked
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Height:
- 60 mm
- Shape Of Signaling Unit Head:
- round
- Net Weight:
- 0.15 kg
- Cad Overall Depth:
- 70 mm
- Standards:
- IEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
- Environmental Disclosure:
- ENVPEP121006EN
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
$101.00 -
Schneider Electric 9001KR24BM Momentary Push Button
Schneider Electric
$90.00Push-button head, Harmony 9001K, metal, metal mushroom 40mm, black, 30mm, spring return- SKU:
- 9001KR24BM
- Product Compatibility:
- contact block 9001KA..
- Operator Profile:
- mushroom à 40 mm
- Range Of Product:
- Harmony 9001K
- Standards:
- EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
- Operator Additional Information:
- screw-on metal with set screw
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Operation:
- -25-70 °C
- Overvoltage Category:
- class II IEC 61140
- Warranty:
- 18 months
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
- Product Or Component Type:
- head for push-button
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Net Weight:
- 0.141 kg
- Cad Overall Height:
- 45 mm
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Contacts Type And Composition:
- without contact block
- Ambient Air Temperature For Storage:
- -40-70 °C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Cad Overall Depth:
- 70 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Device Presentation:
- basic element
- Mechanical Durability:
- 5000000 cycles
- Device Short Name:
- 9001K
- Rohs Exemption Information:
- Yes
- Bezel Material:
- metal
- Size:
- 30 mm
- Circularity Profile:
- N/A
- Mounting Diameter:
- 30 mm
- China Rohs Regulation:
- X
- Ip Degree Of Protection:
- IP66 IEC 60529
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Head Material:
- metal
- Operator Profile:
- black mushroom à 40 mm, unmarked
- Cap/Operator Or Lens Colour:
- black
- Mercury Free:
- Yes
- Cad Overall Width:
- 45.5 mm
- Sustainable Offer Status:
- Green Premium product
- Protective Treatment:
- TC
- Environmental Disclosure:
- ENVPEP121006EN
- Product Certifications:
- NEMA || UL 508
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
$90.00 -
Schneider Electric 9001KR4BH5 Push Button 600Vac 10A 30Mm T-K
Schneider Electric
$112.00This Harmony 9001K, modular black push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, it has 1 x NO contact and uses screw-clamp terminals. This 35mm mushroom shaped push button headis ideal for...- SKU:
- 9001KR4BH5
- [Ie] Rated Operational Current:
- 10 A, AC-15 || 10 A, DC-13
- Contact Operation:
- standard
- Circularity Profile:
- N/A
- Nema Degree Of Protection:
- NEMA 1/2/3/3R/4/6/12/13
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operator Profile:
- black mushroom à 35 mm
- Device Short Name:
- K
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Operator Profile:
- mushroom à 35 mm
- Range Of Product:
- Harmony 9001K
- Environmental Disclosure:
- ENVPEP121006EN
- Connections - Terminals:
- screw clamp terminals
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- X
- Device Presentation:
- complete product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Light Source:
- without
- Warranty:
- 18 months
- Product Certifications:
- CSA LR 25490 class 3211 03 || CE || NEMA || UL listed file E42259 CCN NKCR
- Cap/Operator Or Lens Colour:
- black
- Size:
- 30 mm
- Light Block Supply:
- without supply
- Bezel Material:
- metal
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Or Component Type:
- push-button
- Operator Additional Information:
- snap-in plastic
- Contacts Type And Composition:
- 1 NO
- Mounting Diameter:
- 30 mm
- Catalog:
- View
- Datasheet:
- View
$112.00 -
Schneider Electric 9001KR24GM Momentary Push Button
Schneider Electric
$90.00Push-button head, Harmony 9001K, metal, metal mushroom 40mm, green, 30mm, spring return- SKU:
- 9001KR24GM
- Size:
- 30 mm
- Product Or Component Type:
- head for push-button
- Operator Additional Information:
- screw-on metal with set screw
- Shape Of Signaling Unit Head:
- round
- Rohs Exemption Information:
- Yes
- Cad Overall Width:
- 45.5 mm
- Protective Treatment:
- TC
- Bezel Material:
- metal
- Environmental Disclosure:
- ENVPEP121006EN
- Warranty:
- 18 months
- Cap/Operator Or Lens Colour:
- green
- Product Certifications:
- UL 508 || NEMA
- Overvoltage Category:
- class II IEC 61140
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
- Device Short Name:
- 9001K
- Device Presentation:
- basic element
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ip Degree Of Protection:
- IP66 IEC 60529
- Ambient Air Temperature For Operation:
- -25-70 °C
- Head Material:
- metal
- Standards:
- EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
- Operator Profile:
- mushroom à 40 mm
- Product Compatibility:
- contact block 9001KA..
- China Rohs Regulation:
- X
- Net Weight:
- 0.141 kg
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Contacts Type And Composition:
- without contact block
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Cad Overall Depth:
- 70 mm
- Operator Profile:
- green mushroom à 40 mm, unmarked
- Sustainable Offer Status:
- Green Premium product
- Mounting Diameter:
- 30 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Cad Overall Height:
- 45 mm
- Range Of Product:
- Harmony 9001K
- Ambient Air Temperature For Storage:
- -40-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circularity Profile:
- N/A
- Mercury Free:
- Yes
- Mechanical Durability:
- 5000000 cycles
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
$90.00 -
Schneider Electric 9001KR1LH5 Push Button 600Vac 10A 30Mm T-K
Schneider Electric
$66.00Push-button, Harmony 9001K, metal, flush, blue, 30mm, spring return, 1 NO- SKU:
- 9001KR1LH5
- Mounting Diameter:
- 30 mm
- Type Of Operator:
- spring return
- China Rohs Regulation:
- X
- Range Of Product:
- Harmony 9001K
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Contact Operation:
- standard
- Warranty:
- 18 months
- Bezel Material:
- metal
- Operator Additional Information:
- metal guard
- Environmental Disclosure:
- ENVPEP121006EN
- Circularity Profile:
- N/A
- Light Block Supply:
- without supply
- Device Presentation:
- complete product
- Sustainable Offer Status:
- Green Premium product
- Cap/Operator Or Lens Colour:
- blue
- Contacts Type And Composition:
- 1 NO
- Rohs Exemption Information:
- Yes
- Size:
- 30 mm
- Nema Degree Of Protection:
- NEMA 1/2/3/3R/4/6/12/13
- Operator Profile:
- flush
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Device Short Name:
- K
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Or Component Type:
- push-button
- Product Certifications:
- NEMA || UL listed file E42259 CCN NKCR || CE || CSA LR 25490 class 3211 03
- Light Source:
- without
- [Ie] Rated Operational Current:
- 10 A, AC-15 || 10 A, DC-13
- Mercury Free:
- Yes
- Brochure:
- View
- Datasheet:
- View
$66.00 -
Schneider Electric 9001KR3RH5 Push Button 600Vac 10A 30Mm T-K
Schneider Electric
$99.00This Harmony 9001K, modular projecting red push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, has 1 x NO contact and uses screw-clamp terminals. This projecting push button provides an ergonomic...- SKU:
- 9001KR3RH5
- [Ie] Rated Operational Current:
- 10 A, AC-15 || 10 A, DC-13
- Warranty:
- 18 months
- Nema Degree Of Protection:
- NEMA 1/2/3/3R/4/6/12/13
- China Rohs Regulation:
- X
- Type of Operator:
- spring return
- Mounting Diameter:
- 30 mm
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP121006EN
- Operator Additional Information:
- without guard
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Light Block Supply:
- without supply
- Range Of Product:
- Harmony 9001K
- Product Or Component Type:
- push-button
- Light Source:
- without
- Size:
- 30 mm
- Circularity Profile:
- N/A
- Device Presentation:
- complete product
- Cap/Operator Or Lens Colour:
- red
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Contacts Type And Composition:
- 1 NO
- Device Short Name:
- K
- Operator Profile:
- red projecting
- Contact Operation:
- standard
- Bezel Material:
- metal
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Certifications:
- CSA LR 25490 class 3211 03 || NEMA || UL listed file E42259 CCN NKCR || CE
- Connections - Terminals:
- screw clamp terminals
- Operator Profile:
- projecting
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
$99.00 -
Schneider Electric 9001KR1GH6 Pushbutton 600Vac 10A 30Mm Type K
Schneider Electric
$99.00This Harmony 9001K, modular flush green push button with full guard has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, has 1 x NC contact and uses screw-clamp terminals. This flush push button with full guard...- SKU:
- 9001KR1GH6
- Mounting Diameter:
- 30 mm
- Operator Profile:
- flush
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Type Of Operator:
- spring return
- Contacts Type And Composition:
- 1 NC
- Circularity Profile:
- N/A
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ie] Rated Operational Current:
- 10 A, AC-15 || 10 A, DC-13
- Device Short Name:
- K
- Rohs Exemption Information:
- Yes
- Cap/Operator Or Lens Colour:
- green
- Warranty:
- 18 months
- Bezel Material:
- metal
- Connections - Terminals:
- screw clamp terminals
- Nema Degree Of Protection:
- NEMA 1/2/3/3R/4/6/12/13
- Light Block Supply:
- without supply
- Product Certifications:
- CSA LR 25490 class 3211 03 || CE || NEMA || UL listed file E42259 CCN NKCR
- China Rohs Regulation:
- X
- Sustainable Offer Status:
- Green Premium product
- Range Of Product:
- Harmony 9001K
- Operator Additional Information:
- metal guard
- Size:
- 30 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free:
- Yes
- Contact Operation:
- standard
- Environmental Disclosure:
- ENVPEP121006EN
- Product Or Component Type:
- push-button
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Device Presentation:
- complete product
- Light Source:
- without
- Operator Profile:
- green flush
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
$99.00 -
Schneider Electric 9001KR24Y Pushbutton Operator 30Mm Type K +Options
Schneider Electric
$81.00Push-button head, Harmony 9001K, metal, mushroom 35mm, yellow, 30mm, spring return- SKU:
- 9001KR24Y
- Circularity Profile:
- N/A
- Product Or Component Type:
- head for push-button
- Contacts Type And Composition:
- without contact block
- Shape Of Signaling Unit Head:
- round
- Cap/Operator Or Lens Colour:
- yellow
- Mounting Diameter:
- 30 mm
- Environmental Disclosure:
- ENVPEP121006EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Type Of Operator:
- spring return
- Device Short Name:
- 9001K
- China Rohs Regulation:
- X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operator Additional Information:
- screw-on plastic with set screw
- Rohs Exemption Information:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Bezel Material:
- metal
- Range Of Product:
- Harmony 9001K
- Operator Profile:
- mushroom à 35 mm
- Operator Profile:
- yellow flush
- Warranty:
- 18 months
- Brochure:
- View
- Datasheet:
- View
$81.00 -
Schneider Electric 9001KR4G Pushbutton Operator 30Mm Type K +Options
Schneider Electric
$121.50This Harmony 9001K, modular green push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel. This 35mm mushroom shaped push button headis ideal for situations where quick actions are required for a process...- SKU:
- 9001KR4G
- Sustainable Offer Status:
- Green Premium product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Range Of Product:
- Harmony 9001K
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Mercury Free:
- Yes
- China Rohs Regulation:
- X
- Operator Additional Information:
- snap-in plastic
- Type Of Operator:
- spring return
- Circularity Profile:
- N/A
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Cap/Operator Or Lens Colour:
- green
- Contacts Type And Composition:
- without contact block
- Environmental Disclosure:
- ENVPEP121006EN
- Bezel Material:
- metal
- Mounting Diameter:
- 30 mm
- Operator Profile:
- green flush
- Shape Of Signaling Unit Head:
- round
- Operator Profile:
- mushroom à 35 mm
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- head for push-button
- Device Short Name:
- 9001K
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
$121.50 -
Schneider Electric 9001KYAF4 Control Station Enclosure 30Mm K+Sk+Kx
Schneider Electric
$228.00CONTROL STATION ENCLOSURE 30MM K+SK+KX- SKU:
- 9001KYAF4
- Environmental Disclosure:
- ENVPEP121028EN
- Reach Free Of Svhc:
- Yes
- Warranty:
- 18 months
- Material:
- sheet steel
- Product Or Component Type:
- empty enclosure
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Rohs Exemption Information:
- Yes
- Nema Degree Of Protection:
- NEMA 3/13
- Device Short Name:
- KY
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free:
- Yes
- Number Of Cut-Out:
- 4 cut-outs
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free:
- Yes
- Circularity Profile:
- N/A
- Range Of Product:
- Harmony 9001K
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- X
- Datasheet:
- View
$228.00 -
Schneider Electric 9001KYSS201 Control Station + Operators
Schneider Electric
$422.00CONTROL STATION + OPERATORS- SKU:
- 9001KYSS201
- Contact Block Name:
- KA1
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Enclosure/Cubicle Description:
- surface mounting
- Circularity Profile:
- N/A
- China Rohs Regulation:
- X
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Enclosure Material:
- Stainless Steel
- Connections - Terminals:
- screw-clamp terminals
- Sustainable Offer Status:
- Green Premium product
- Provided Equipment:
- contact block || legend plate
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Type Of Installation:
- indoor/outdoor
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- complete control station
- Range Of Product:
- Harmony 9001K
- [Ie] Rated Operational Current Ac:
- 0.416666666666667
- Environmental Disclosure:
- ENVPEP121029EN
- Toxic Heavy Metal Free:
- Yes
- Nema Degree Of Protection:
- NEMA 3/4/13
- Device Short Name:
- KY
- Control Station Composition:
- 2 push-buttons 1 NO + 2 NC START-STOP
- Reach Free Of Svhc:
- Yes
- Catalog:
- View
- Datasheet:
- View
$422.00 -
Schneider Electric 9001KYSK201 Control Station + Operators
Schneider Electric
$422.00This complete control station with two pushbuttons provides an ergonomic interface for your machines The control station is composed of two push-buttons with 2 NO + 2 NC (Start-Stop), and it is connected to control circuits with classic screw-clamp...- SKU:
- 9001KYSK201
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Sustainable Offer Status:
- Green Premium product
- Product Or Component Type:
- complete control station
- Mercury Free:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Nema Degree Of Protection:
- NEMA 3/4/4X/13
- Enclosure Material:
- Stainless Steel
- China Rohs Regulation:
- X
- Enclosure/Cubicle Description:
- surface mounting
- Range Of Product:
- Harmony 9001K
- Toxic Heavy Metal Free:
- Yes
- Provided Equipment:
- contact block || legend plate
- Contact Block Name:
- KA1
- Type Of Installation:
- indoor/outdoor
- Environmental Disclosure:
- ENVPEP121029EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Control Station Composition:
- 2 push-buttons 1 NO + 2 NC START-STOP
- [Ie] Rated Operational Current Ac:
- 0.416666666666667
- Warranty:
- 18 months
- Device Short Name:
- KY
- Connections - Terminals:
- screw-clamp terminals
- Reach Free Of Svhc:
- Yes
- Circularity Profile:
- N/A
- Datasheet:
- View
$422.00 -
Schneider Electric 9001SKY203 Control Station + Operators
Schneider Electric
$422.00The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and...- SKU:
- 9001SKY203
- Enclosure/Cubicle Description:
- wall-mounted enclosure 2 cut-outs
- Nema Degree Of Protection:
- NEMA 4 || NEMA 3 || NEMA 1 || NEMA 13
- Reach Free Of Svhc:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Circularity Profile:
- N/A
- Provided Equipment:
- label plate START-STOP
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Or Component Type:
- control station
- Connector Type:
- screw clamp connector
- Device Short Name:
- 9001SK
- Range Of Product:
- Harmony 9001KY
- Enclosure Material:
- polymeric
- Environmental Characteristic:
- resistant against immersion in water || dust and oil resistant
- Toxic Heavy Metal Free:
- Yes
- Mercury Free:
- Yes
- Contact Block Name:
- KA1 || KA3
- Sustainable Offer Status:
- Green Premium product
- [Ue] Rated Operational Voltage:
- 600 V
- China Rohs Regulation:
- X
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ambient Air Temperature For Operation:
- -25-60 °C
- Environmental Disclosure:
- ENVPEP121030EN
- Control Station Composition:
- 2 push-buttons 1 NO + 2 NC
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Type Of Installation:
- indoor/outdoor
- [Ie] Rated Operational Current Ac:
- 0.416666666666667
- Product Certifications:
- CSA LR25490 class 3211 03 || CE || UL listed file E42259 CCN NKCR
- Catalog:
- View
- Datasheet:
- View
$422.00
