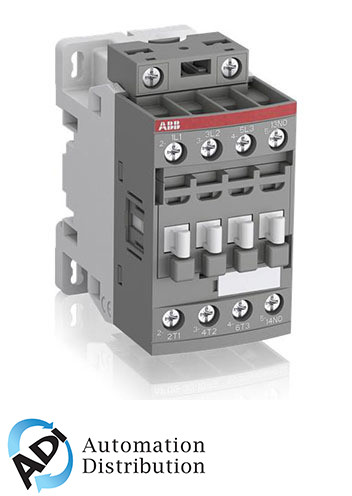

ABB AF12-30-10-12 3-Pole Contactor with Electronic Coil Interface, 48-130 V AC/DC, Built-in Surge Protection, and Auxiliary Contact for Industrial Applications
ABB
$83.71
The ABB AF12-30-10-12 is a versatile 3-pole contactor designed for controlling power circuits up to 690 V AC and 220 V DC, making it ideal for managing 3-phase motors and non-inductive or slightly inductive loads. This contactor features an innovative electronic coil interface that accommodates a wide range of control voltages, from 48 to 130 V AC/DC, allowing for seamless integration into various systems without the need for coil changes. With built-in surge protection, the AF12-30-10-12 eliminates the need for additional surge suppressors, ensuring reliable performance even in unstable networks. The contactor's block type design includes 3 main poles and 1 built-in auxiliary contact, with options for front and side-mounted add-on auxiliary contact blocks. It supports both AC and DC operation and offers a wide range of accessories for enhanced functionality. Capable of controlling motors up to 5.5 kW at 400 V AC or 7-1/2 hp at 480 V UL, and switching power circuits up to 28 A, this contactor is a compact and efficient solution for various industrial applications.
- Terminal Type:
- Screw Terminals
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz DC Operation 48 ... 130 V
- Spec Sheet:
- View
