Description
Overview
Abb

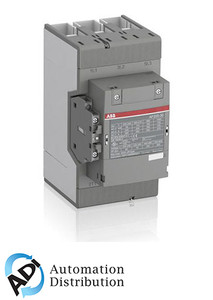

Ac Non-Reversing Iec Contactors, Af Series
Item# Af205-30-00-12
Ctr,3P,192A,48-130Vac/Dc
Specifications
Item Number: &Nbsp;
Af205-30-00-12
Upc: &Nbsp;
888614157354
Brand:
Abb
Item Category:
Contactors
Subcategory:
Ac Non-Reversing Iec
Series:
Af
Coil Voltage:
48~130 Vac/Vdc
Coil Type:
Magnetic
Poles:
3No
Auxiliary Contacts:
None
Termination:
Box Lug
General Purpose (Ac1):
350 Amps
Ul Motor Switching (Ac3):
205 Amps
Max Hp 200/208V 3Ph:
60 Horsepower
Max Hp 230/240V 3Ph:
75 Horsepower
Max Hp 460/480V 3Ph:
150 Horsepower
Max Hp 575/600V 3Ph:
200 Horsepower
H X W X D:
7.72 In X 4.13 In X 5.98 In
&Nbsp;&Nbsp;Net Weight:
6 Lb 10 Oz
