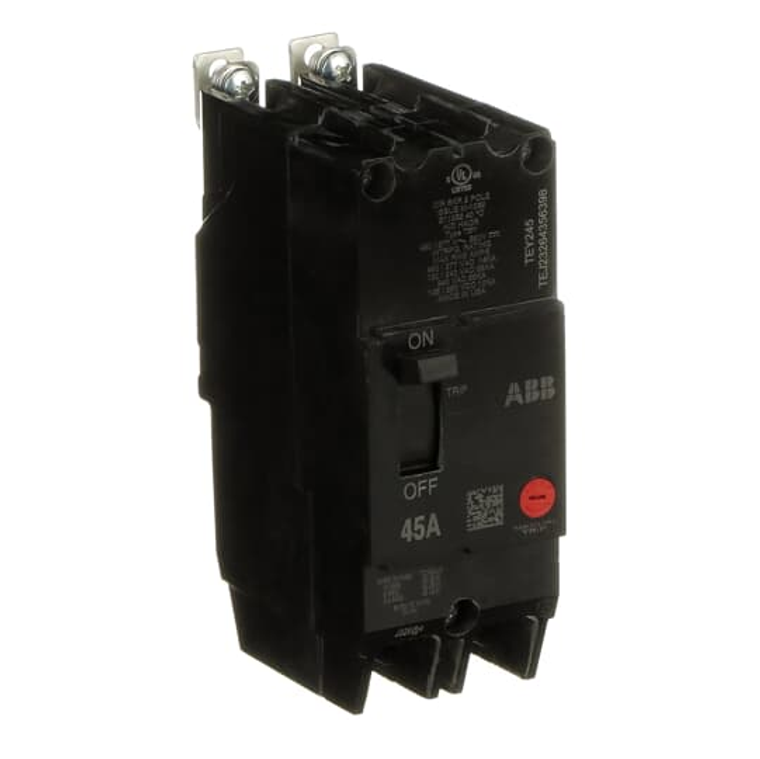

ABB TEY245 MCCB 2-Pole 45A Bolt-On Circuit Breaker for Grounded 480Y/277 Vac Systems - Compact Design with Quick-Make/Quick-Break Mechanisms and Customizable Accessories
ABB
$389.00
The ABB TEY245 MCCB is a compact, two-pole, 45A bolt-on circuit breaker designed for grounded 480Y/277 Vac systems. Its one-inch wide per pole design allows for efficient use of space, making it ideal for various applications as a lug-lug breaker. The bolt-on mounting base accessory enhances its versatility. This circuit breaker features Quick-make / Quick-break mechanisms, common trip bars, and an easy-to-spot trip indication, ensuring both safety and reliability. Available in 1, 2, and 3 pole versions, the TEY series can be customized with auxiliary contact and shunt trip accessories to meet specific needs.
- Load Rating:
- HACR / HID
- Trip Range:
- Non-Interchangeable
- Sub Brand:
- TEY
- Amperage Rating:
- 45A
- Trip Type:
- LI
- Frame:
- TEY
- Interrupt Rating:
- 14kA@277 Vac / 65kA@120 Vac / 65kA@120/240 Vac / 65kA@240 Vac
- Number Of Poles:
- 2
- Standard:
- E11592
- Application:
- Thermal Magnetic
- Brand Name:
- TEY / Q-Line (Bolt-On)
- Connection:
- 14-8 kcmil / 12-8 kcmil
- Spec Sheet:
- View
