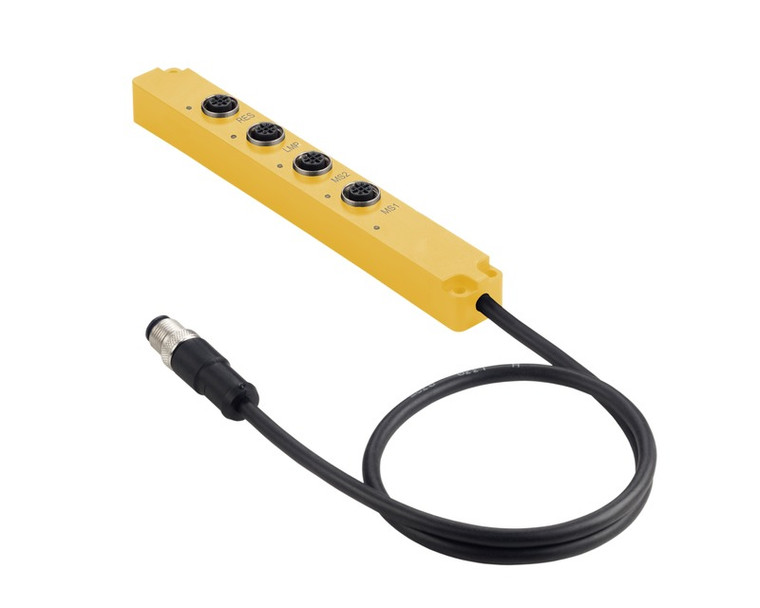

Leuze AC-SCM5U Sensor connection module
Leuze
$197.00
The Leuze AC-SCM5U is a sensor connection module designed for MLD 330 and MLD 530 multiple light beam safety devices. It provides five connections with a supply voltage of 24 V DC (±20%). The module facilitates reliable interfacing in safety applications, with compatible accessories including holder sets and variants like AC-SCM5U-BT featuring a 500 mm PUR-sheathed M12 cable.
Documentation
- Technical Datasheet: https://www.leuze.com/en-int/ac-scm5u/520150
- Product Details and Downloads: https://www.leuze.com/en-us/ac-scm5u/520150
- Accessories Overview: https://www.leuze.com/en-int/ac-scm5u-bt/520151
- Suitable for:
- MLD 330, MLD 530 multiple light beam safety devices
- Insulation resistance, min.:
- 10,000,000,000 ?
- Current load, max.:
- 1 A
- Supply voltage UB:
- 24 V, DC, -20 ... 20 %
- Number of connections:
- 5 Piece(s)
- Function:
- Connection to device,Local interface
- Type of connection:
- Cable with connector
- Cable length:
- 500 mm
- Sheathing material:
- PUR
- Type:
- Male
- Function:
- Local input, muting sensor 1
- Designation on device:
- MS1
- Function:
- Local input, muting sensor 2
- Designation on device:
- MS2
- Function:
- Connection - external muting indicator
- Designation on device:
- LMP
- Function:
- Connection - start/muting restart button
- Designation on device:
- RES
- Design:
- Cubic
- Dimension (W x H x L):
- 30 mm x 20.9 mm x 144 mm
- Housing material:
- Plastic
- Plastic housing:
- PA 6
- Net weight:
- 160 g
- Housing color:
- Black
- Type of fastening:
- Through-hole mounting
- Type of display:
- LED
- Number of LEDs:
- 4 Piece(s)
- Ambient temperature, operation:
- -30 ... 80 °C
- Customs tariff number:
- 85369010
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27279219
- ECLASS 9.0:
- 27440108
- ECLASS 10.0:
- 27440108
- ECLASS 11.0:
- 27440108
- ECLASS 12.0:
- 27440108
- ECLASS 13.0:
- 27440108
- ECLASS 14.0:
- 27440108
- ECLASS 15.0:
- 27440108
- ETIM 5.0:
- EC002585
- ETIM 6.0:
- EC002585
- ETIM 7.0:
- EC002585
- ETIM 8.0:
- EC002585
- ETIM 9.0:
- EC002585
- ETIM 10.0:
- EC002585
- Datasheet:
- View
- Declaration of Conformity:
- View
