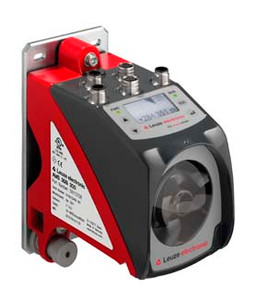

Leuze AMS 348i 300 H SSI Optical distance sensor
Leuze
$9,355.00
The Leuze AMS 348i 300 H SSI is an optical laser distance sensor from the AMS 300i series, designed for absolute distance measurement up to 300 m against a reflector using propagation time principle. It offers ±5 mm accuracy, 1.0 mm consistency, adjustable resolution from 0.001 to 10 mm, and supports traverse rates up to 10 m/s, with 1.7 ms measurement value output and 8 ms integration time. Electrical specifications include 1830 VDC supply (PELV, safety class III), ?250 mA current consumption, 2 programmable inputs/outputs, cast zinc/aluminum housing (2.45 kg, IP65), and SSI interface for high-precision position control. Typical applications encompass collision protection for cranes/gantry cranes, positioning of high-bay storage devices, electroplating plants, skillet systems, travel/lifting axes, and gantry trolleys, compliant with laser class 2 (IEC/EN 60825).
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/ams-348i-300-h-ssi/50127226
- Product Specifications (PDF): https://leuze.com.ua/downloads/products/ams/DS_AMS-348i-300-H-SSI_eng_50127226.pdf
- Series Overview: https://www.leuze.com/en-us/ams-348i-300-h/50113716
- Dimensioned Drawings and Connection Guide: https://www.leuze.com/en-us/products/ams-300i/AMS-348i-300-SSI_eng_50127222
- Series:
- AMS 300i
- Application:
- Collision protection of cranes / gantry cranes,Positioning of electroplating plants,Positioning of skillet systems and side-tracking skates,Positioning of stacker cranes
- Order guide:
- Reflective tape must be ordered separately
- Special version:
- Heating
- Light source:
- Laser, Red
- Laser class:
- 2, IEC/EN 60825-1:2014
- Light spot size [at sensor distance]:
- 225 mm [300,000 mm]
- Measurement value calculation time:
- 8 ms
- Measurement range:
- 200 ... 300,000 mm
- Resolution:
- 0.001 ... 10 mm
- Accuracy:
- 5 mm
- Reproducibility (3 sigma):
- 3 mm
- Measurement value output:
- 1.7 ms
- Max. traverse rate:
- 10 m/s
- Supply voltage UB:
- 18 ... 30 V, DC
- Type:
- PROFINET, SSI
- Conformance class:
- B
- Protocol:
- PROFINET RT
- Switch functionality:
- Integrated
- Transmission speed:
- 100 Mbit/s
- Clock frequency:
- 80 ... 800 kHz
- Designation on device:
- BUS IN
- Material:
- Metal
- Function:
- BUS OUT,Data interface
- Designation on device:
- BUS OUT
- Encoding:
- D-coded
- Function:
- PWR / SW IN / OUT,Voltage supply
- Designation on device:
- PWR
- Function:
- Service interface
- Designation on device:
- SERVICE
- Function:
- Data interface,SSI
- Designation on device:
- SSI
- Encoding:
- B-coded
- Dimension (W x H x L):
- 84 mm x 166.5 mm x 159 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc/aluminum
- Lens cover material:
- Glass
- Net weight:
- 2,450 g
- Operational controls:
- Membrane keyboard
- Ambient temperature, operation:
- -30 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Customs tariff number:
- 90318020
- ECLASS 5.1.4:
- 27270801
- ECLASS 8.0:
- 27270801
- ECLASS 9.0:
- 27270801
- ECLASS 10.0:
- 27270801
- ECLASS 11.0:
- 27270801
- ECLASS 12.0:
- 27270916
- ECLASS 13.0:
- 27270916
- ECLASS 14.0:
- 27270916
- ECLASS 15.0:
- 27270916
- ETIM 5.0:
- EC001825
- ETIM 6.0:
- EC001825
- ETIM 7.0:
- EC001825
- ETIM 8.0:
- EC001825
- ETIM 9.0:
- EC001825
- ETIM 10.0:
- EC001825
