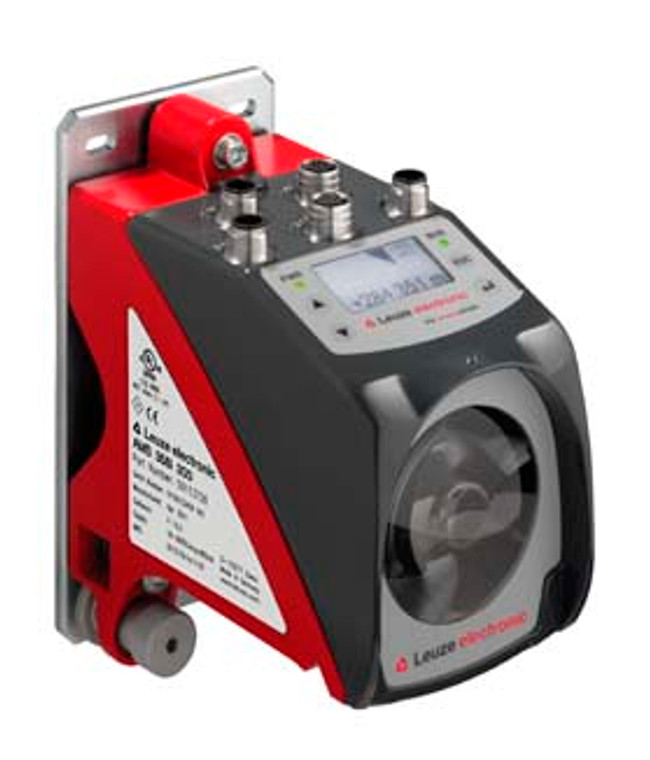

Leuze AMS 348i 40 SSI Optical distance sensor
Leuze
$6,432.00
The Leuze AMS 348i 40 SSI is an optical distance sensor from the AMS 300i series, utilizing laser time-of-flight measurement against a reflector for absolute positioning with a range of 200 to 40,000 mm, accuracy of ±2 mm, and reproducibility of 0.9 mm (3 sigma). It features SSI interface with 80800 kHz clock frequency, 1830 V DC supply, integrated PROFINET RT switch (100 Mbit/s, conformance class B), and five M12 connectors for BUS IN/OUT (4-pin D-coded), power/service (5-pin A-coded), and SSI (5-pin B-coded male). Housed in a cubic metal enclosure (84 x 166.5 x 159 mm, 2.45 kg, IP65), it supports traverse rates up to 10 m/s, LC display with membrane keyboard, and applications including crane collision protection, gantry crane positioning, electroplating plants, and high-bay storage systems.
Documentation
- Technical Datasheet: https://www.leuze.com/en-int/products/product/50127219
- Dimensioned Drawings and Installation Guide: https://www.leuze.com/en-int/support/downloads/ams-348i-datasheet
- Electrical Connection Diagram: https://www.leuze.com/en-int/manuals/ams-300i-connection-guide
- Product Series Catalog: https://www.leuze.com/en-int/products/ams-300i-series
- Series:
- AMS 300i
- Application:
- Collision protection of cranes / gantry cranes,Positioning of electroplating plants,Positioning of skillet systems and side-tracking skates,Positioning of stacker cranes
- Order guide:
- Reflective tape must be ordered separately
- Light source:
- Laser, Red
- Laser class:
- 2, IEC/EN 60825-1:2014
- Light spot size [at sensor distance]:
- 40 mm [40,000 mm]
- Measurement value calculation time:
- 8 ms
- Measurement range:
- 200 ... 40,000 mm
- Resolution:
- 0.001 ... 10 mm
- Accuracy:
- 2 mm
- Reproducibility (3 sigma):
- 0.9 mm
- Measurement value output:
- 1.7 ms
- Max. traverse rate:
- 10 m/s
- Supply voltage UB:
- 18 ... 30 V, DC
- Type:
- PROFINET, SSI
- Conformance class:
- B
- Protocol:
- PROFINET RT
- Switch functionality:
- Integrated
- Transmission speed:
- 100 Mbit/s
- Clock frequency:
- 80 ... 800 kHz
- Designation on device:
- BUS IN
- Material:
- Metal
- Function:
- BUS OUT,Data interface
- Designation on device:
- BUS OUT
- Encoding:
- D-coded
- Function:
- PWR / SW IN / OUT,Voltage supply
- Designation on device:
- PWR
- Function:
- Service interface
- Designation on device:
- SERVICE
- Function:
- Data interface,SSI
- Designation on device:
- SSI
- Encoding:
- B-coded
- Dimension (W x H x L):
- 84 mm x 166.5 mm x 159 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc/aluminum
- Lens cover material:
- Glass
- Net weight:
- 2,450 g
- Operational controls:
- Membrane keyboard
- Ambient temperature, operation:
- -5 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Customs tariff number:
- 90318020
- ECLASS 5.1.4:
- 27270801
- ECLASS 8.0:
- 27270801
- ECLASS 9.0:
- 27270801
- ECLASS 10.0:
- 27270801
- ECLASS 11.0:
- 27270801
- ECLASS 12.0:
- 27270916
- ECLASS 13.0:
- 27270916
- ECLASS 14.0:
- 27270916
- ECLASS 15.0:
- 27270916
- ETIM 5.0:
- EC001825
- ETIM 6.0:
- EC001825
- ETIM 7.0:
- EC001825
- ETIM 8.0:
- EC001825
- ETIM 9.0:
- EC001825
- ETIM 10.0:
- EC001825
