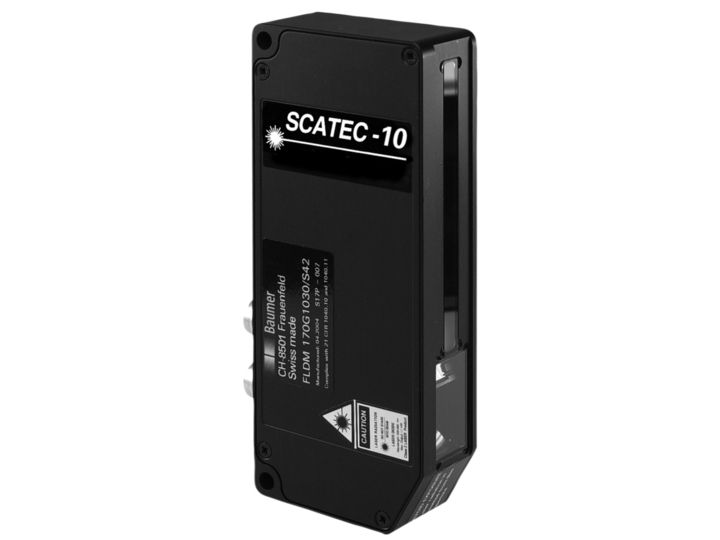

Baumer FLDM 170G1011/S42 10153175
Baumer
The Baumer FLDM 170G1011/S42 10153175 is a high-performance sensor designed for precise edge detection and object counting in fast-paced environments. It features a measuring distance of 0 to 90 mm with an optimal operating distance of 70 mm, and can handle counting rates up to 3,000,000 copies per hour with object speeds up to 5 m/sec. The sensor is equipped with a visible red laser line for accurate targeting and a pulsed red laser diode light source with a wavelength of 670 nm. It offers advanced features such as synchronization input, direct gap detection, and false pulse suppression with four program options. Sensitivity can be adjusted to four preset levels or set by the customer, ensuring adaptability to various application requirements. The sensor also includes a push-pull output circuit with adjustable output pulse length from 0.3 to 100 ms, and is protected against short circuits and reverse polarity. It operates within a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 230 mA (no load). The robust die-cast zinc housing and glass front optics are designed to withstand demanding industrial environments, with an operating temperature range of 0 to +50 °C and a protection class of IP 54. Connectivity is facilitated through a DIN 45322, 6-pin main connector and a DIN 45326, 8-pin interface connector, compatible with Baumer's ScaDiag software for enhanced configuration and diagnostics.
