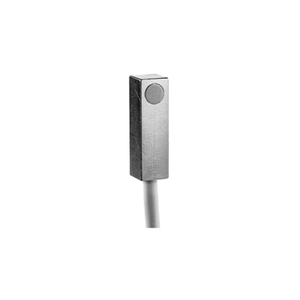

Baumer IFFM 06N35A3/O1S05L 10146217 is a flush-mounted inductive sensor with a nominal sensing distance of 1 mm and adjustable hysteresis between 2 to 20% of Sr. It features a dual red LED output indicator and operates at a switching frequency of 5 kHz. The sensor supports a voltage supply range of 6 to 30 VDC and has a maximum current consumption of 12 mA with no load. It includes an NPN break function (NC) output circuit, with a voltage drop of less than 2 VDC and an output current capacity of 200 mA. Enhanced with short circuit and reverse polarity protection, this sensor is designed with a rectangular, brass nickel-plated housing and an LCP sensing face. Dimensions include a 6 mm width and a 24 mm housing length, and it connects via an M5 connector. Suitable for operating temperatures from -25 to +75 °C, it is IP 67 rated for protection against dust and immersion.
- Mounting type:
- Flush
- Nominal sensing distance Sn:
- 1 mm
- Hysteresis:
- 2 20 % of Sr
- Output indicator:
- 2 port LED red
- Switching frequency:
- 5 kHz
- Voltage supply range +Vs:
- 6 30 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Material (sensing face):
- LCP
- Housing material:
- Brass nickel plated
- Dimension:
- 6 mm
- Housing length:
- 24 mm
- Connection types:
- Connector M5
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
