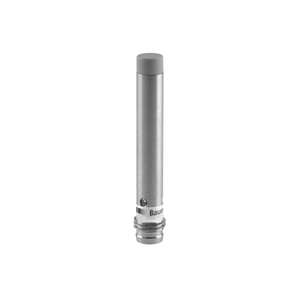

Baumer IR06.P06S-N46.NC1Z.7SL 11148705 is a non-flush, cylindrical smooth proximity sensor with an enhanced distance feature (GammaProx) and a nominal sensing distance of 6 mm. It offers a temperature drift of ±10% (0 to +60 °C) and ±15% (-25 to +75 °C), with a hysteresis range of 3 to 20% of Sr. The sensor is equipped with a three-port red LED output indicator and operates with a correction factor of 100% for mild steel, 80% for stainless steel, and 50% for aluminum. It has a switching frequency of 400 Hz and requires a voltage supply range of 6 to 36 VDC, with a maximum current consumption of 12 mA at no load. The output circuit features an NPN break function (NC), with a voltage drop of less than 2 VDC and an output current of 100 mA. It includes short circuit and reverse polarity protection. The sensor's housing is made of stainless steel, with a PBT sensing face, and measures 6.5 mm in diameter and 46 mm in length. It connects via an M8 connector and operates within a temperature range of -25 to +75 °C. The sensor is IP 67 rated for protection against dust and immersion.
- Mounting type:
- Non-flush
- Special type:
- Enhanced distance (GammaProx)
- Nominal sensing distance Sn:
- 6 mm
- Temperature drift:
- ± 10 % (0 ... +60 °C) ± 15 % (-25 ... +75 °C)
- Hysteresis:
- 3 20 % of Sr
- Output indicator:
- 3 port LED red
- Correction factor typ.:
- Mild steel 100 %, stainless steel 80 %, aluminum 50 %
- Switching frequency:
- 400 Hz
- Voltage supply range +Vs:
- 6 36 VDC
- Current consumption max. (no load):
- 12 mA
- Output circuit:
- NPN break function (NC)
- Voltage drop Vd:
- <2 VDC
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical smooth
- Material (sensing face):
- PBT
- Housing material:
- Stainless steel
- Dimension:
- 6.5 mm
- Housing length:
- 46 mm
- Connection types:
- Connector M8
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
