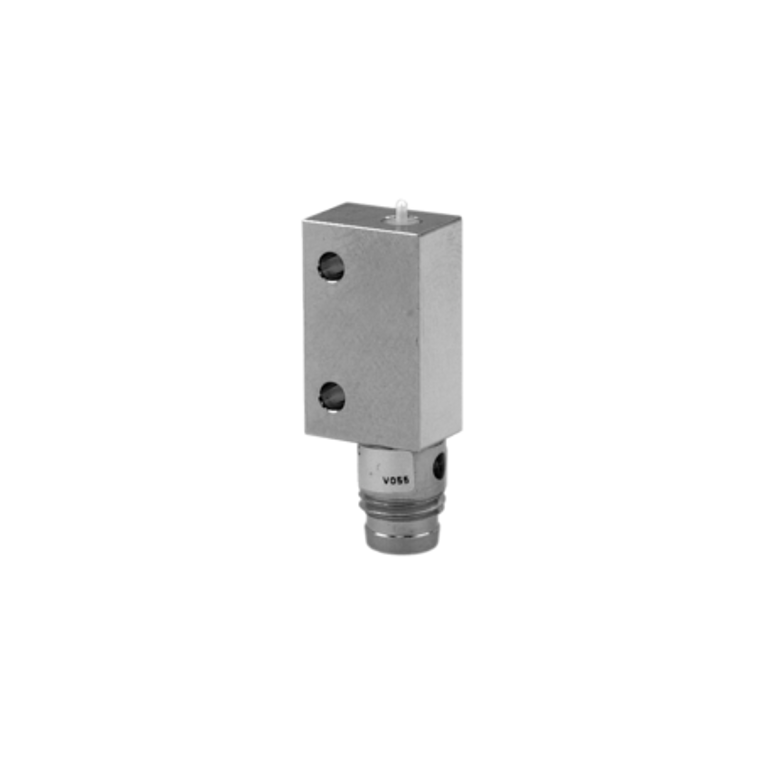

The Baumer MY-COM C75/S35 10238653 is a high-precision mechanical contact sensor featuring a repeat accuracy of 0.001 mm and an activating force of 75 cN. It has a mechanical pre-run/overrun of approximately -/1.5 mm and can be approached frontally. This sensor operates with a maximum DC voltage of 15 VDC and a maximum AC voltage of 24 VAC, supporting a switching current of up to 2 mA for DC and 50 mA for AC. It includes a break function (NC) mechanical output circuit and an activating pin made of zirconium oxide ZrO2. The housing is made of brass nickel-plated, ensuring durability, and measures 8 mm in dimension with a length of 30 mm. It connects via an M8 connector and operates within a temperature range of -20 to +75 °C. The sensor is rated at IP 50 for protection. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/My_Com_C75_S35_web_EN.pdf?mediaPK=8799745376286).
- Repeat accuracy:
- 0.001 mm
- Activating force:
- 75 cN
- Mech. pre-run / overrun:
- - / 1,5 mm approx.
- Measurement type:
- Contact with medium
- Direction of approach:
- Frontal
- DC voltage max.:
- 15 VDC
- Switch. current DC max.:
- 2 mA
- AC voltage max.:
- 24 VAC
- Switch. current AC max.:
- 50 mA
- Output circuit:
- Break function (NC) mechanical
- Activating pin:
- Zirconium oxide ZrO2
- Housing material:
- Brass nickel plated
- Dimension:
- 8 mm
- Design:
- Rectangular
- Housing length:
- 30 mm
- Connection types:
- Connector M8
- Operating temperature:
- -20 +75 °C
- Protection class:
- IP 50
- Datasheet:
- View
