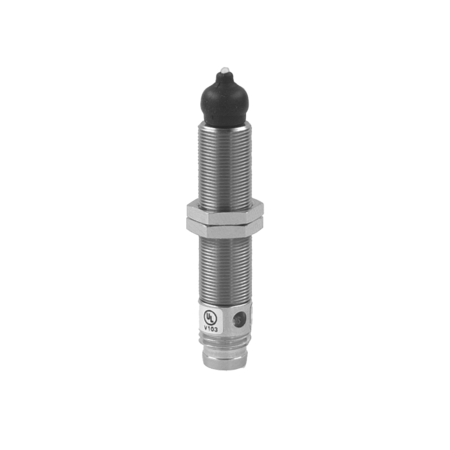

Baumer MY-COM M75N/S35 10242627
Baumer
$881.00
The Baumer MY-COM M75N/S35 10242627 is a high-precision sensor with a repeat accuracy of 0.001 mm and an activating force of 75 cN. It features a mechanical pre-run/overrun of approximately -/1.5 mm and operates on a voltage supply range of 5 to 36 VDC. The sensor supports a maximum load current of 50 mA at 24 VDC and includes an NPN make function (NO) output circuit. The activating pin is made of zirconium oxide ZrO2, and the housing is crafted from brass nickel-plated material. This cylindrical threaded sensor has a dimension of 8 mm and a housing length of 37 mm. It connects via an M8 connector and operates within a temperature range of -20 to +75 °C. The device is IP 67 rated, ensuring protection against dust and immersion in water. For more details, you can view the datasheet [here](https://www.baumer.com/medias/__secure__/My_Com_M75N_S35_web_EN.pdf?mediaPK=8799764119582).
- Repeat accuracy:
- 0.001 mm
- Activating force:
- 75 cN
- Mech. pre-run / overrun:
- - / 1,5 mm approx.
- Measurement type:
- Contact with medium
- Direction of approach:
- Frontal
- Voltage supply range +Vs:
- 5 36 VDC
- Load current max. at 24 VDC:
- 50 mA
- Output circuit:
- NPN make function (NO)
- Load resistance min.:
- 480 Ohm
- Activating pin:
- Zirconium oxide ZrO2
- Housing material:
- Brass nickel plated
- Dimension:
- 8 mm
- Design:
- Cylindrical threaded
- Housing length:
- 37 mm
- Connection types:
- Connector M8
- Operating temperature:
- -20 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
