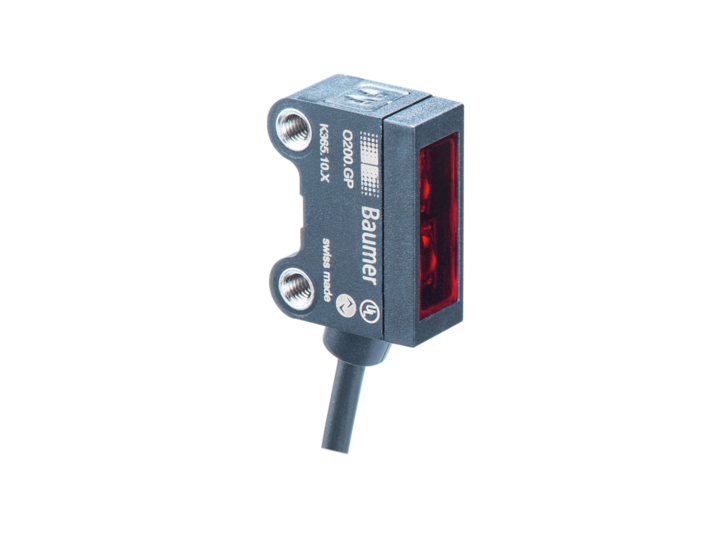

The Baumer O200.RR-PV1Z.72CV/H006 11212640 is a retro-reflective sensor equipped with a pulsed red LED light source. It has an actual range of 3 meters and a nominal range of 4 meters, capable of recognizing objects as small as 7 mm. Features include a polarization filter, flashing output indicator for alignment or soiled lens detection, and LED indicators for power and output status. It does not require sensitivity adjustment and operates with a wavelength of 644 nm. The sensor minimizes reciprocal influence and offers precise alignment within 1.5°. It boasts a quick response and release time of less than 0.5 ms. The sensor operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 16 mA at 24 VDC. It includes PNP complementary output circuits with light/dark operate functions, and is equipped with short circuit and reverse polarity protection. The compact, rectangular design measures 8 mm in width, 25.1 mm in length, and 15.8 mm in depth, with threaded sleeves M3 for mounting and a durable plastic housing. It connects via a 4-pin, 2-meter PVC cable and operates in temperatures ranging from -25 to +50 °C. The sensor is IP 67 rated for protection against dust and immersion.
- Type:
- Retro-reflective sensor
- Light source:
- Pulsed red LED
- Actual range Sb:
- 3 m
- Nominal range Sn:
- 4 m
- Smallest object recognizable typ.:
- 7 mm (FTAR 013A000)
- Polarization filter:
- Yes
- Alignment / soiled lens indicator:
- Flashing output indicator
- Output indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- No
- Wave length:
- 644 nm
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1,5°
- Response time / release time:
- < 0.5 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 30 VDC)
- Current consumption typ.:
- 16 mA (@ 24 VDC)
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP complementary
- Output current:
- 50 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Threaded sleeves M3 (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Operating temperature:
- -25 +50 °C
- Protection class:
- IP 67
