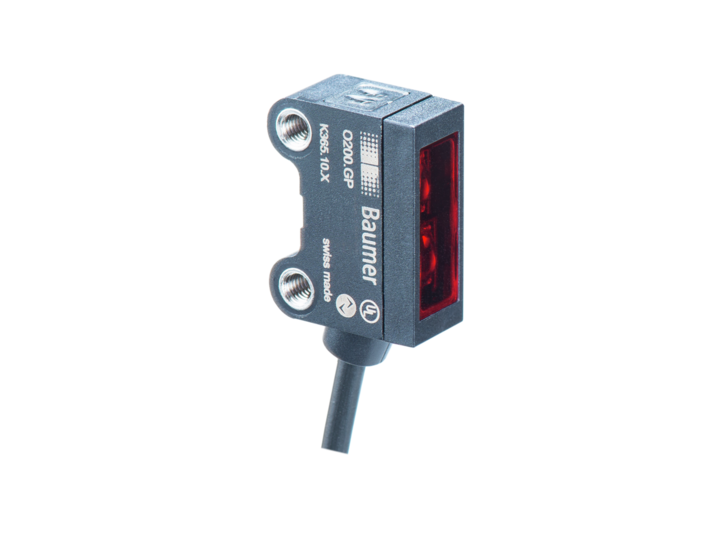

The Baumer O200.TL-GZZY.72CV/FIN2_H006 11230776 is a through beam sensor designed as an emitter with a pulsed red laser diode light source. It features a nominal range of 6 meters and an actual range of 5 meters. The sensor operates with a parallel beam focus and a wavelength of 680 nm. It includes a green LED for power indication and is equipped with IO-Link output function. The sensor supports a voltage supply range of 10 to 30 VDC and has a typical current consumption of 10 mA at 24 VDC. It offers push-pull output circuitry with short circuit and reverse polarity protection. The compact, rectangular design measures 8 mm in width, 25.1 mm in length, and 15.8 mm in depth, with a housing made of plastic (ASA, PMMA) and threaded sleeves M3 for mechanical mounting. The connection is facilitated via a 4-pin, 2-meter PVC cable. This device operates within a temperature range of -20 to +50 °C and is rated IP 67 for protection against dust and water ingress.
- Type:
- Through beam sensor
- Emitter / receiver:
- Emitter
- Light source:
- Pulsed red laser diode
- Actual range Sb:
- 5 m
- Nominal range Sn:
- 6 m
- Power on indication:
- LED green
- Laser class:
- 1
- Distance to focus:
- Parallel beam
- Wave length:
- 680 nm
- Alignment optical axis:
- < 1,5°
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA (@ 10 VDC)
- Current consumption typ.:
- 10 mA (@ 24 VDC)
- Output function:
- By IO-Link only
- Output circuit:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 25.1 mm
- Depth:
- 15.8 mm
- Design:
- Rectangular
- Mechanical mounting:
- Threaded sleeves M3 (stainless steel)
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Cable characteristics:
- PVC / PVC 4 x 0.08 mm²
- Operating temperature:
- -20 +50 °C
- Protection class:
- IP 67
