Baumer O500H.TR-ZZZZ.PVOV 11167296 is a through beam sensor designed for hygienic applications, featuring an emitter with a pulsed red LED light source. It offers an actual range of 25 m and a nominal range of 40 m. The sensor includes a green LED for power indication and operates with a wavelength of 645 nm. Its alignment precision is less than 1°, and it has a fast response time of less than 0.49 ms. The unit requires a voltage supply of 10 to 30 VDC and has a typical current consumption of 30 mA. It includes reverse polarity protection and is housed in a rectangular, stainless steel 1.4404 (V4A) casing with PMMA front optics. The sensor connects via a flylead connector M12 and operates within a temperature range of -25 to +60 °C. It is rated IP 68/69K & proTect+ for high protection against ingress, making it suitable for demanding environments. Ecolab approved and adapted from EHEDG, this sensor ensures compliance with stringent hygiene standards.
- Type:
- Through beam sensor
- Special type:
- Hygienic design
- Emitter / receiver:
- Emitter
- Light source:
- Pulsed red LED
- Actual range Sb:
- 25 m
- Nominal range Sn:
- 40 m
- Power on indication:
- LED green
- Wave length:
- 645 nm
- Alignment optical axis:
- < 1°
- Approvals/certificates:
- Ecolab Adapted from EHEDG
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 30 mA
- Reverse polarity protection:
- Yes
- Width / diameter:
- 20.2 mm
- Height / length:
- 47.7 mm
- Depth:
- 36.4 mm
- Design:
- Rectangular
- Housing material:
- Stainless steel 1.4404 (V4A)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M12, L=200 mm
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 68/69K & proTect+
- Datasheet:
- View
-
-
-

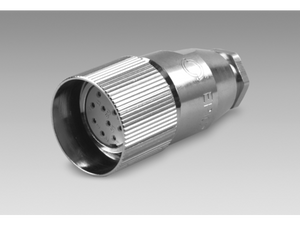

Baumer ESG 34CP1000G
Baumer
-

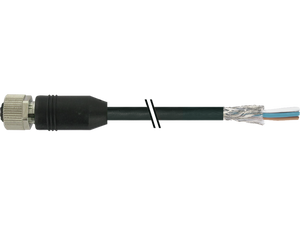

Baumer ESG 34CP0500G
