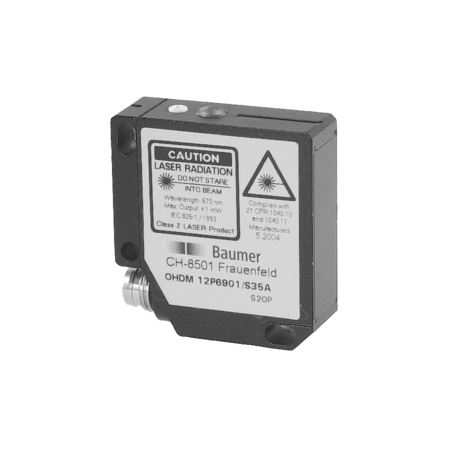

The Baumer OHDM 12P6901/S35A 10151381 is a background suppression sensor with a sensing distance ranging from 17 to 120 mm. It features a pulsed red laser diode light source, with a laser class of 2 and a wavelength of 675 nm. The sensor has a quick response time of less than 1 ms and a release time of less than 2.7 ms. It operates on a voltage supply range of 12 to 28 VDC and includes both light and dark operating modes. The sensor is equipped with a green LED for power indication and a red LED for light indication. Sensing distance can be adjusted via a teach-in method. It offers protection features such as short circuit protection and reverse polarity protection. The sensor's housing is made of die-cast zinc with a glass front, and it connects via an M8 4-pin connector. It is designed to withstand harsh environments with an IP67 protection class and an operating temperature range of 0 to +50 °C. The compact design measures 12.4 mm in width, 37 mm in height, and 34.5 mm in depth.
- Type:
- Background suppression
- Sensing distance Tw:
- 17 120 mm
- Sensing range Tb (at Tw max.):
- 16 120 mm
- Sensing range Tb (at Tw min.):
- 16 17 mm
- Power on indication:
- LED green
- Light indicator:
- LED red
- Sensing distance adjustment:
- Teach-in
- Beam diameter:
- 0.9 0.5 mmLight source=Pulsed red laser diode
- Laser class:
- 2
- Wave length:
- 675 nm
- Response time:
- < 1 ms
- Release time:
- < 2.7 ms
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 80 mA
- Current consumption typ.:
- 40 mA
- Voltage drop Vd:
- <2.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 12.4 mm
- Height / length:
- 37 mm
- Depth:
- 34.5 mm
- Design:
- Rectangular
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Protection class:
- IP 67
- Operating temperature:
- 0 +50 °C
