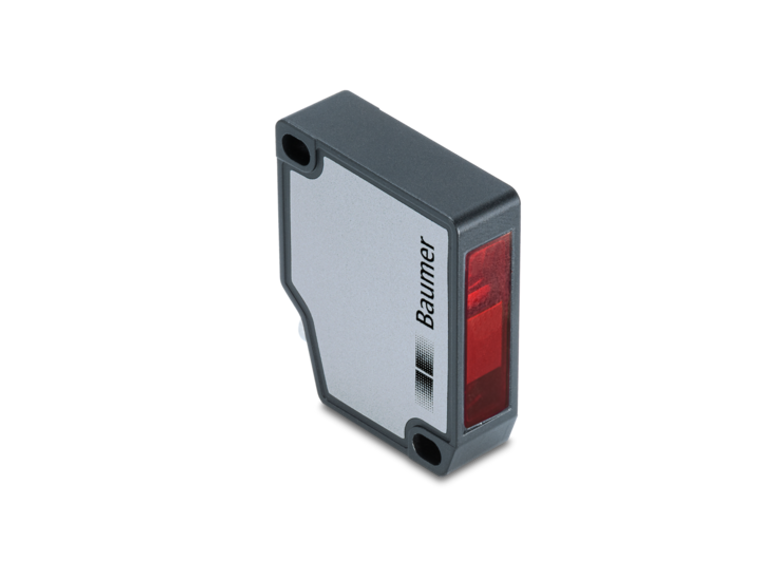

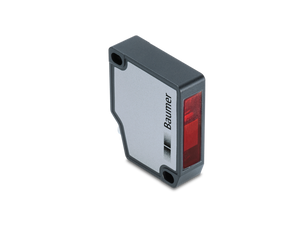

The Baumer OM30-P0550.HV.YUN 11231083 is a high-precision distance measuring sensor with a measuring distance of 50 to 550 mm and a linearity error of ±0.23%. It features a pulsed red laser diode light source with a wavelength of 660 nm and a laser class of 2. The sensor offers a high measuring frequency of 5000 Hz and a quick response delay of 0.4 ms. It supports both analog and digital outputs, with output signals ranging from 0 to 10 VDC or 0 to 5 VDC. The device is equipped with short circuit and reverse polarity protection, ensuring durability and reliability. It operates within a voltage supply range of 12 to 28 VDC and has a maximum current consumption of 50 mA. The compact sensor has a rectangular, front-view design with a die-cast zinc housing and glass optics, measuring 13.6 mm in width, 49 mm in height, and 40.3 mm in depth. It is designed to withstand harsh environments with an IP67 protection class and can operate in temperatures ranging from -10 to +50 °C. The sensor also features robust vibration and shock resistance according to IEC standards.
- Type:
- Distance measuring
- Measuring distance Sd:
- 50 550 mm
- Measuring range Mr:
- 500 mm
- Adjustment:
- Teach-in: button / IO-Link
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Repeat accuracy:
- 2 86 µm
- Linearity error:
- ± 0.23 % Mr
- Beam type:
- Point
- Temperature drift:
- 0,08 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Maximum pulse power:
- 2 mW
- Pulse duration:
- 0.001 ... 1.2 ms
- Pulse period:
- 0.2 ... 3.4 ms
- Response delay:
- 0.4 ms
- Measuring frequency:
- 5000 Hz
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 50 mA
- Output circuit:
- Analog and digital
- Output signal:
- 0 10 VDC / 0 5 VDC
- Load resistance:
- > 100 kOhm
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 13.6 mm
- Height / length:
- 49 mm
- Depth:
- 40.3 mm
- Design:
- Rectangular, front view
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Weight:
- 67 g
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
- Datasheet:
- View
- Operating Manual:
- View
- QN-QUOTE-REQUEST:
- true
