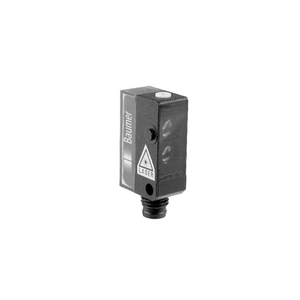

Baumer OZDK 10P5101 10136501 is a diffuse contrast sensor with a sensing distance of 3 to 150 mm and an optimum operating distance of 20 to 40 mm. It can detect remission differences greater than 8% on grey surfaces and offers repeat accuracy of less than 0.2 mm at laser focus. The sensor features a pulsed red laser diode light source, with a wavelength of 650 nm and laser class 2. It has a fast response and release time of less than 0.05 ms. The sensor operates on a voltage supply range of 10 to 30 VDC, with typical current consumption of 40 mA and a maximum of 50 mA. It includes short circuit and reverse polarity protection, and has an output function for light/dark operation with a PNP output circuit. The sensor's compact design measures 10.4 mm in width, 27 mm in height, and 16.3 mm in depth, housed in plastic (ASA) with a PMMA front optics. It is equipped with a 4-pin, 2 m cable connection and is rated IP 65 for protection against dust and water, suitable for operating temperatures from -10 to +50 °C.
- Type:
- Diffuse contrast sensor
- Sensing distance Tw:
- 3 150 mm
- Optimum operating distance:
- 20 40 mm
- Detectable remission difference (on grey):
- > 8 %
- Repeat accuracy:
- < 0.2 mm at laser focus
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Sensitivity adjustment:
- Potentiometer, 5 turn
- Distance to focus:
- 40 mmLight source=Pulsed red laser diode
- Laser class:
- 2
- Wave length:
- 650 nm
- Response time / release time:
- < 0.05 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 50 mA
- Current consumption typ.:
- 40 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 10.4 mm
- Height / length:
- 27 mm
- Depth:
- 16.3 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 65
- Operating temperature:
- -10 +50 °C
