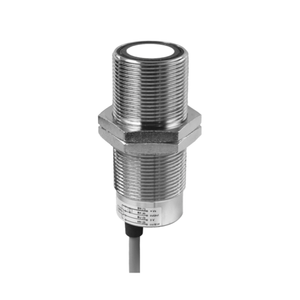

Baumer UNAM 30P3104 10224447
Baumer

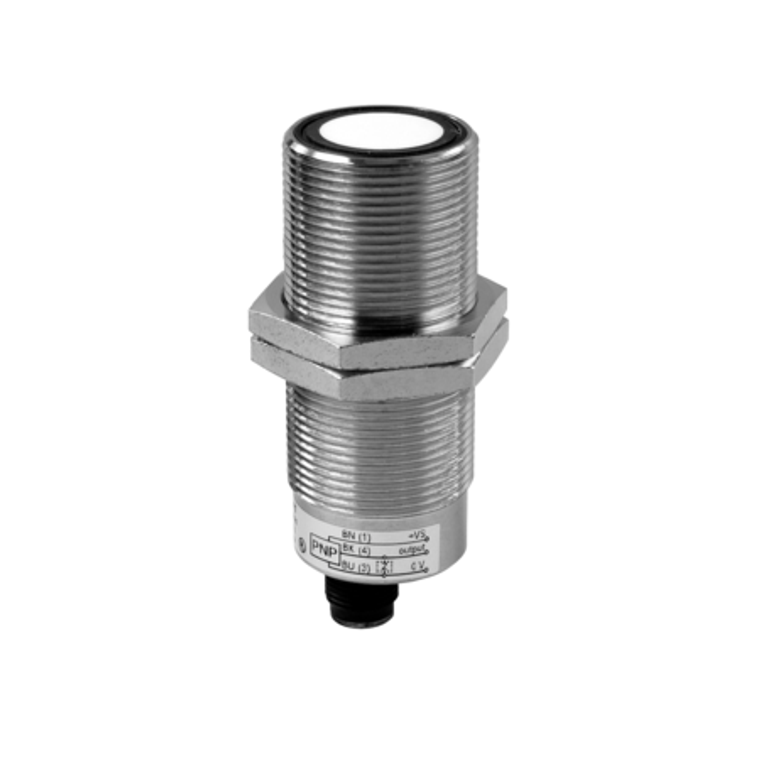

Baumer UNAM 30P3104/S14 10233668
Baumer
The Baumer UNAM 30P3104/S14 10233668 is an ultrasonic sensor with a scanning range of 200 to 1500 mm and features a repeat accuracy of 1 mm. It operates at a sonic frequency of 200 kHz and includes a potentiometer for adjustments. The sensor has a quick response and release time of less than 100 ms each, and a temperature drift of less than 0.18% Sde/K. It is equipped with a green LED output indicator and a target indication flashing for alignment aid. The sensor supports a voltage supply range of 12 to 30 VDC and has a maximum current consumption of 30 mA with a PNP break function (NC) output circuit. It offers a voltage drop of less than 2 VDC and includes short circuit and reverse polarity protection. The cylindrical threaded housing is made of brass nickel-plated, measuring 30 mm in width/diameter and 70 mm in height/length, and connects via an M12 connector. It operates within a temperature range of -25 to +60 °C and is rated IP 67 for protection against dust and water ingress.
- Scanning range Sd:
- 200 1500 mm
- Scanning range far limit Sde:
- 200 1500 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 1 mm
- Temperature drift:
- < 0,18 % Sde/K
- Response time ton:
- < 100 ms
- Release time toff:
- < 100 ms
- Sonic frequency:
- 200 kHz
- Adjustment:
- Potentiometer
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 30 mA
- Output circuit:
- PNP break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Width / diameter:
- 30 mm
- Height / length:
- 70 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 67
