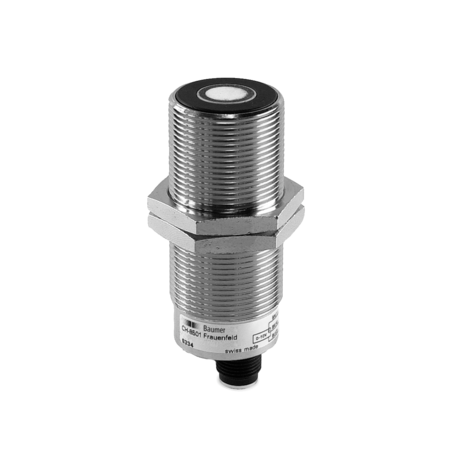

Baumer UNAM 30U9103/S14 10119391

Baumer UNAM 30U9103/S14 10119391

Baumer
SKU:
10119391
Availability:
Contact us to confirm availability and lead times.
$1,197.00
Condition:
New
Current Stock:
Description
The Baumer UNAM 30U9103/S14 10119391 is a high-precision ultrasonic sensor designed for distance measurement within a range of 100 to 1000 mm. It features a standard version with a repeat accuracy of 0.5 mm and a resolution of less than 0.3 mm. The sensor operates with a response and release time of less than 80 ms and has a sonic frequency of 240 kHz. It includes a potentiometer for easy adjustment and a target indication flashing for alignment aid. The LED green light indicator provides status updates. This sensor is powered by a voltage supply range of 15 to 30 VDC and consumes a maximum of 35 mA with no load. It offers a voltage output signal of 0 to 10 VDC and supports an output current of 20 mA. Enhanced features include short circuit and reverse polarity protection. The cylindrical threaded design, made from brass nickel-plated material, measures 30 mm in width/diameter and 70 mm in height/length. It connects via an M12 connector and operates within a temperature range of -10 to +60 °C. The sensor is IP 67 rated, ensuring protection against dust and water ingress. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/UNAM_30U9103_S14_web_EN.pdf?mediaPK=8801187102750).
Additional Information
Scanning range Sd:
100 … 1000 mm
Scanning range far limit Sde:
100 … 1000 mm
Version:
Standard
Repeat accuracy:
0.5 mm
Resolution:
< 0.3 mm
Response time ton:
< 80 ms
Release time toff:
< 80 ms
Temperature drift:
> 50 mm < 2 % of distance to target Sde
Sonic frequency:
240 kHz
Adjustment:
Potentiometer
Alignment aid:
Target indication flashing
Light indicator:
LED green
Voltage supply range +Vs:
15 … 30 VDC
Current consumption max. (no load):
35 mA
Output circuit:
Voltage output
Output signal:
0 ... 10 VDC
Output current:
20 mA
Residual ripple:
< 10 % Vs
Short circuit protection:
Yes
Reverse polarity protection:
Yes
Design:
Cylindrical threaded
Housing material:
Brass nickel plated
Width / diameter:
30 mm
Height / length:
70 mm
Connection types:
Connector M12
Operating temperature:
-10 … +60 °C
Protection class:
IP 67
Datasheet:
View
