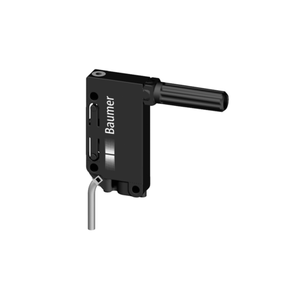

The Baumer UNDK 09T9114 11011519 is a high-precision ultrasonic sensor designed for versatile applications, featuring a scanning range of 30 to 200 mm with consistent repeat accuracy of 0.5 mm, which improves to less than 0.1 mm with an active filter. It offers a resolution of less than 0.3 mm, further refined to less than 0.1 mm with the filter. The sensor's response time is under 7 ms, ensuring quick feedback for dynamic applications. It operates at a sonic frequency of 380 kHz and includes helpful alignment aids such as target indication flashing and dual-color LED status indicators. The sensor is equipped with RS232 output and supports a baud rate of 115200 for efficient data communication. It is built to withstand harsh environments with IP 67 protection and operates within a temperature range of 0 to +60 °C. The robust PA 12 housing measures 8.6 mm in width, 48.8 mm in length, and 30.5 mm in depth, making it compact and easy to integrate into various setups. Additional features include short circuit and reverse polarity protection, ensuring reliability and longevity in industrial settings.
- Scanning range Sd:
- 30 200 mm
- Scanning range close limit Sdc:
- 30 200 mm
- Scanning range far limit Sde:
- 30 200 mm
- Repeat accuracy:
- 0.5 mm
- Repeat accuracy (filter active):
- < 0.1 mm
- Resolution:
- < 0.3 mm
- Resolution (filter active):
- < 0.1 mm
- Response time ton:
- < 7 ms
- Temperature drift:
- < 0,18 % Sde/K (comp. off, factory set) < 2 % So (compensation on)
- Sonic frequency:
- 380 kHz
- Alignment aid:
- Target indication flashing
- Light indicator:
- Yellow LED / red LED
- Voltage supply range +Vs:
- 15 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- RS232
- Baud rate:
- 115200
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Rectangular
- Housing material:
- PA 12
- Width / diameter:
- 8.6 mm
- Height / length:
- 48.8 mm
- Depth:
- 30.5 mm
- Connection types:
- Cable PUR 4 x 0,08, 2 m
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
