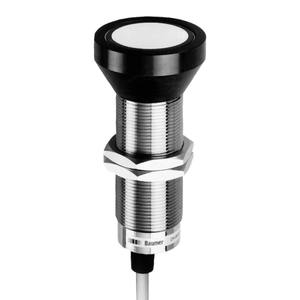

The Baumer URAM 50P7121 10142555 is a high-performance ultrasonic sensor designed for precise distance measurement and object detection within a range of 0 to 3000 mm. It features a reflector position range of 600 to 3000 mm with an adjustable operating range of ±4% and a limit range of ±6%. The sensor offers a repeat accuracy of 3 mm and is resistant to temperature drifts of less than 2%. Equipped with synchronization capabilities and available in a multiplex version upon request, it ensures flexible integration into various applications. The response and release times are both under 160 ms, and it operates at a sonic frequency of 120 kHz. Setup is simplified with Teach-in adjustment and a target indication flashing for alignment aid. The output is indicated by a green LED, and the sensor operates on a voltage supply range of 12 to 30 VDC, consuming a maximum of 35 mA with no load. It features a PNP break function (NC) output circuit with an output current of 200 mA and includes short circuit and reverse polarity protection. The robust cylindrical design has a brass nickel-plated housing, measures 30 mm in diameter, and 95 mm in length, with a 2-meter cable connection. It operates effectively in temperatures ranging from -10 to +60 °C and is IP 67 rated for dust and water resistance.
- Scanning range Sd:
- 0 3000 mm
- Reflector position Sde:
- 600 3000 mm
- Adjusting range reflector (operating range):
- ± 4 % Sde
- Adjusting range reflector (limit range):
- ± 6 % Sde
- Repeat accuracy:
- 3 mm
- Temperature drift:
- < 2 % Sde
- Synchronization:
- Yes
- Multiplex version:
- On request
- Response time ton:
- < 160 ms
- Release time toff:
- < 160 ms
- Sonic frequency:
- 120 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 35 mA
- Output circuit:
- PNP break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Width / diameter:
- 30 mm
- Height / length:
- 95 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
