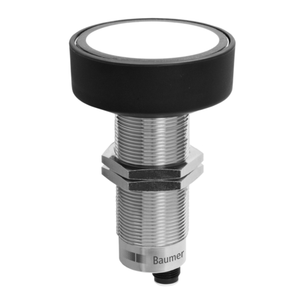

Baumer UZAM 70N8131/S14C 11099366 is a 2-point proximity switch with a scanning range of 600 to 6000 mm and a hysteresis of approximately 4% Sde. It features high repeat accuracy of 3 mm and minimal temperature drift below 2% Sde. The device operates with a response and release time of less than 240 ms and a sonic frequency of 80 kHz. It includes a Teach-in adjustment, target indication flashing for alignment aid, and dual-color LED output indicators. The switch supports a voltage supply range of 12 to 30 VDC, consumes a maximum of 40 mA with no load, and offers an output current of 200 mA. It has a voltage drop of less than 2 VDC and includes short circuit and reverse polarity protection. The cylindrical, nickel-plated brass housing measures 30 mm in diameter and 95 mm in length, with an M12 connector type. It operates within a temperature range of -25 to +60 °C and meets IP 67 protection standards.
- Special type:
- 2 point proximity switch
- Scanning range Sd:
- 600 6000 mm
- Scanning range far limit Sde:
- 600 6000 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 3 mm
- Temperature drift:
- < 2 % Sde
- Response time ton:
- < 240 ms
- Release time toff:
- < 240 ms
- Sonic frequency:
- 80 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- Green / yellow LED
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 40 mA
- Output circuit:
- NPN make function (NO) / break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Width / diameter:
- 30 mm
- Height / length:
- 95 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
