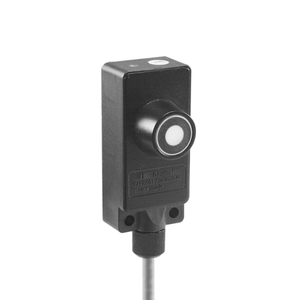

The Baumer UZDK 30P6113/S14 10126628 is a high-performance 2-point proximity switch with a scanning range of 30 to 250 mm and a hysteresis of approximately 5%. It features a repeat accuracy of 0.5 mm and minimal temperature drift of less than 2%. The device operates with a response and release time of less than 20 ms and a sonic frequency of 300 kHz. It includes a Teach-in adjustment, target indication flashing for alignment aid, and dual-color LED output indicators. The proximity switch supports a voltage supply range of 12 to 30 VDC, consumes a maximum of 40 mA with no load, and offers a PNP make function (NO) output circuit with a maximum output current of 200 mA. It also features a voltage drop of less than 2 VDC and residual ripple of less than 10%. Enhanced safety features include short circuit and reverse polarity protection. The device is housed in a robust rectangular body made of polyester and die-cast zinc, measuring 30 mm in width, 65 mm in height, and 31 mm in depth, with an M12 connector type. It operates within a temperature range of -10 to +60 °C and is rated IP 67 for protection against dust and water ingress.
- Special type:
- 2 point proximity switch
- Scanning range Sd:
- 30 250 mm
- Scanning range far limit Sde:
- 30 250 mm
- Hysteresis typ.:
- 5 % Sde
- Repeat accuracy:
- 0.5 mm
- Temperature drift:
- < 2 % Sde
- Response time ton:
- < 20 ms
- Release time toff:
- < 20 ms
- Sonic frequency:
- 300 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- Green / yellow LED
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 40 mA
- Output circuit:
- PNP make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Polyester / die-cast zinc
- Width / diameter:
- 30 mm
- Height / length:
- 65 mm
- Depth:
- 31 mm
- Connection types:
- Connector M12
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
