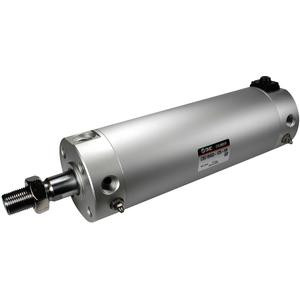

SMC CBG1DN100-200-RN CBG1 Series End Lock Cylinder
SMC
$269.30
The SMC CBG1DN100-200-RN CBG1 Series End Lock Cylinder is designed for precision and versatility in pneumatic applications. This cylinder features a standard female rod end, allowing for seamless integration into your system. It offers easy fine adjustment of the auto switch position, ensuring optimal performance and adaptability. Unlike other models, this cylinder does not include a trunnion mounting female thread, simplifying the basic type variation. For added convenience, part numbers with rod end bracket and/or pivot bracket are available, eliminating the need to order these components separately. Additionally, the cylinder is equipped with an auto switch, compatible with the CDG1-Z series, including CDG1, CDG1W, CDG1K, CDG1KW, and CDG1R models, enhancing its functionality and ease of use.
- With Auto Switch(Built-in Magnet):
- Without Auto Switch
- Mounting Style:
- Double Clevis Style
- Type:
- Rubber Bumper
- Bore Size:
- Bore Size 100 mm
- Cylinder Stroke:
- Standard Stroke 200 mm
- Suffix For Cylinder:
- Without Rod Boot
- Lock Position:
- Rod End Lock
- Manual Release Type:
- Non-locking Type
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
