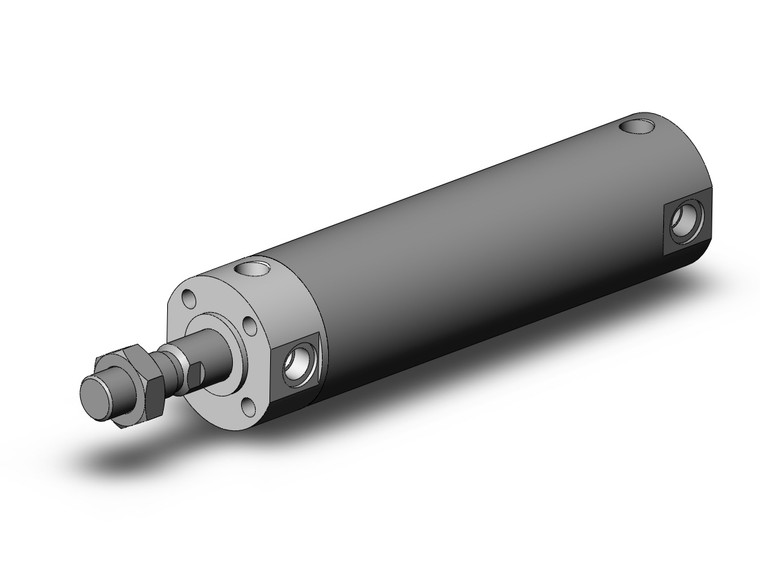

SMC CDG1BN40-100Z CG1 Cylinder, 40mm Bore, 100mm Stroke, Double Acting, Single Rod

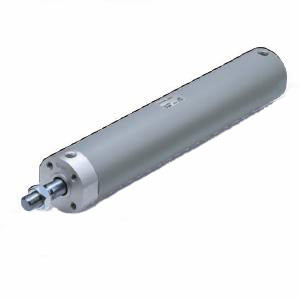

The SMC CDG1BN40-100Z CG1 Cylinder is engineered for precision and reliability in demanding industrial applications. This double-acting, single rod air cylinder is part of the renowned C(D)G1-Z series, designed to deliver exceptional performance with its impact extruded aluminum tube. This construction ensures an extraordinarily smooth finish, facilitating low break-away pressure and seamless stroke action, essential for high-efficiency operations. With a bore size of 40mm and a stroke length of 100mm, this cylinder is ideal for a wide range of applications. The series offers versatility with eight bore sizes, ensuring compatibility with various system requirements. Engineers will appreciate the standard female piston rod threads, which enhance the ease of integration into existing systems. The SMC CDG1BN40-100Z is auto switch capable, allowing for easy fine adjustment of the auto switch position, a critical feature for precision control in automated systems. The absence of trunnion mounting female threads and the availability of various mounting bracket options provide flexibility in installation, catering to diverse engineering needs. For detailed specifications and installation guidelines, refer to the [Series Catalog](https://content2.smcetech.com/pdf/CG1_Z.pdf). This document provides comprehensive insights into the product's capabilities, ensuring informed decision-making for engineers and manufacturing professionals seeking reliable and efficient pneumatic solutions.
