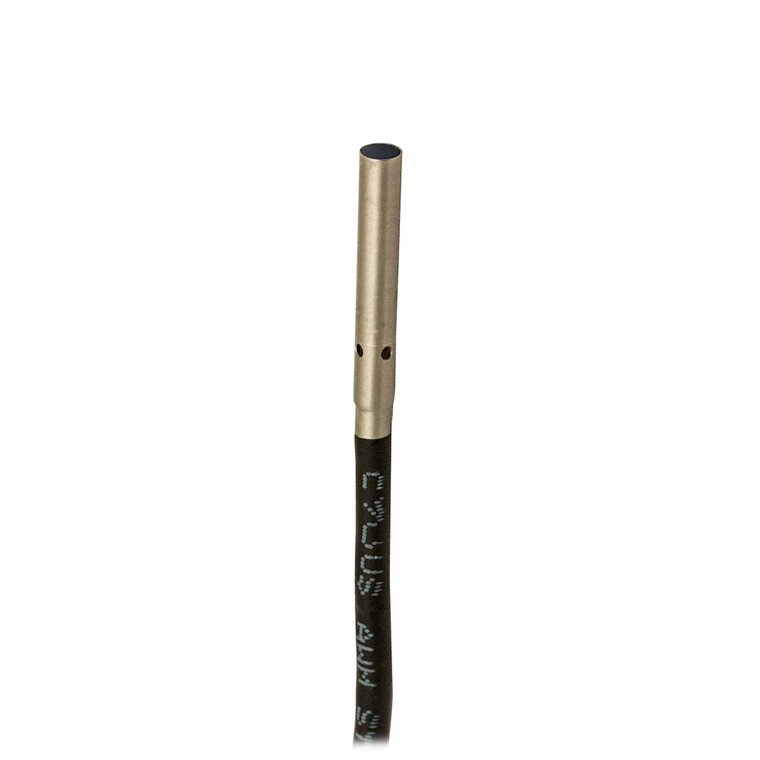

Datasensing AA1/AP-1A Sensors
Datasensing
$95.16
The Datasensing AA1/AP-1A Sensors are designed for precision and reliability in industrial applications. These ultraminiaturized cylindrical inductive sensors feature a compact Ø3 design with an IP67 protection degree, ensuring durability in harsh environments. With a nominal sensing distance of 0.6mm and an operating distance of 0
0.48mm, they are ideal for detecting standard targets of 3x3mm FE360. The sensors offer a high switching frequency of 3kHz and operate within a voltage range of 10...30Vdc, making them versatile for various applications.
Constructed with AISI303 stainless steel housing and a PBT active head, these sensors are built to withstand temperatures from -25°C to +70°C. They include essential protections such as short-circuit, reverse polarity, and impulsive overvoltage protection, along with a yellow LED indicator for output state. The sensors are equipped with a 2m PUR cable for easy connectivity and are CE and UL approved, ensuring compliance with international standards. With a weight of just 30g and dimensions of Ø3 / L = 22mm, they are easy to install and integrate into existing systems.
- Nominal sensing distance:
- 0,6mm
- Operanting distance:
- 0 0,48mm
- Standard target:
- 3x3mm FE360
- Correction Factor:
- copper: 0,32 ± 10% / aluminium: 0,24 ± 10% / brass: 0,39 ± 10% / stainless steel: 0,57 ± 10%
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- Ø3 standard flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 3kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 30g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PUR Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø3
- Approvals:
- CE UL
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
