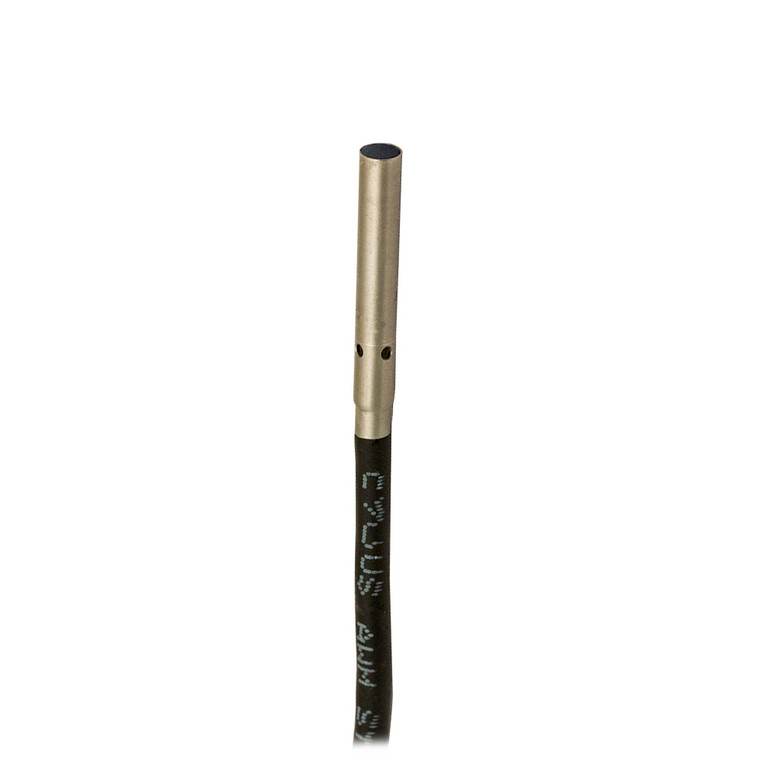

The Datasensing AA1/AP-3A Sensors are designed for precision and reliability in industrial applications. These ultraminiaturized cylindrical inductive sensors feature a nominal sensing distance of 1mm and an operating range of 0 to 0.81mm, making them ideal for detecting small targets like the standard 3x3mm FE360. With a robust IP67 protection rating, these sensors are built to withstand harsh environments, ensuring durability and longevity.
The sensors operate with a PNP output type and a normally open (NO) output function, providing a switching frequency of 3.5kHz. They are equipped with a yellow LED indicator for output state visibility and offer comprehensive protection features, including short-circuit, reverse polarity, and impulsive overvoltage protection. The housing is constructed from AISI303 stainless steel, ensuring resistance to corrosion and mechanical stress.
With a compact design of Ø3mm in diameter and a length of 22mm, these sensors are easy to integrate into various systems. They come with a 2m PUR cable for flexible installation and are capable of operating in temperatures ranging from -25°C to +70°C. The Datasensing AA1/AP-3A Sensors are CE and UL approved, ensuring compliance with international standards for safety and performance.
- Nominal sensing distance:
- 1mm
- Operanting distance:
- 0 0,81mm
- Standard target:
- 3x3mm FE360
- Correction Factor:
- copper: 0,33 ± 10% / aluminium: 0,29 ± 10% / brass: 0,35 ± 10% / stainless steel: 0,71 ± 10%
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- Ø3 standard flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 3,5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 30g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PUR Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø3
- Approvals:
- CE UL
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
