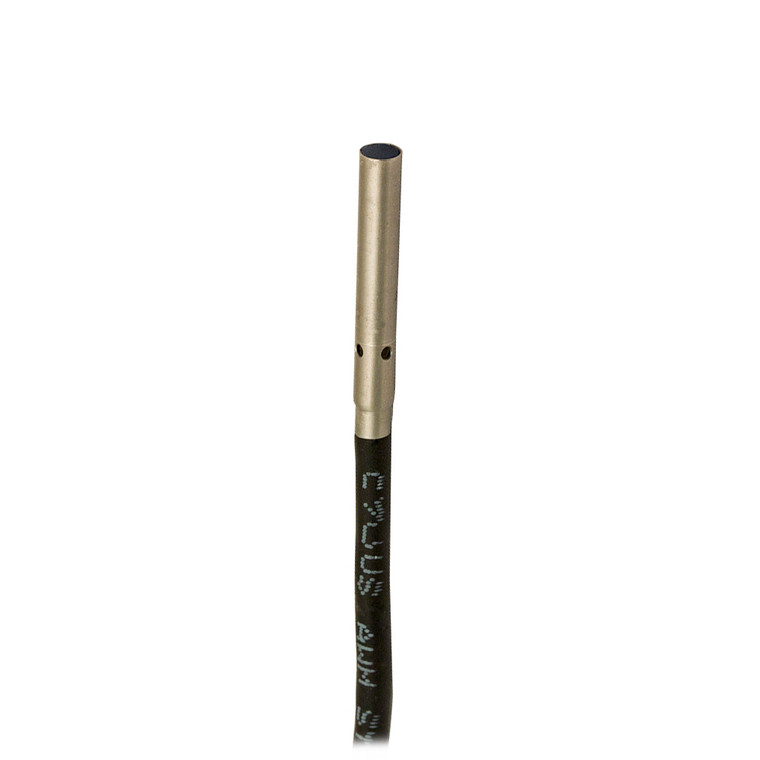

Datasensing AA1/CP-3A Sensors

The Datasensing AA1/CP-3A Sensors are ultraminiaturized cylindrical inductive sensors designed for precision and reliability. With a nominal sensing distance of 1mm and an operating distance of 0 to 0.81mm, these sensors are perfect for applications requiring high accuracy. They feature a standard target size of 3x3mm FE360 and offer correction factors for various materials, including copper, aluminum, brass, and stainless steel. The sensors boast a thermal drift of less than 10% and repeat accuracy of under 5%, ensuring consistent performance. Equipped with a PNP output type and NC output function, the sensors operate at a switching frequency of 3.5kHz and support an operating voltage range of 10 to 30Vdc. They are designed with a no-load supply current of ? 10mA and a load current of ? 100mA, with a leakage current of ? 10?A. The output voltage drop is minimal at ? 1.5V @100mA, and the sensors can handle a maximum ripple content of ? 10%. The sensors are built with robust AISI303 stainless steel housing and a PBT active head material, ensuring durability and resistance to harsh environments. They are shielded for easy mounting and come with a 2m PUR cable for convenient connections. The sensors are equipped with yellow LED indicators for output state visibility and feature comprehensive protection mechanisms, including short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads. With an IP67 protection degree, these sensors are resistant to dust and water, making them suitable for various industrial applications. They are CE and UL approved, ensuring compliance with international standards, and are designed to withstand shocks and vibrations as per IEC standards. Operating efficiently in temperatures ranging from -25°C to +70°C, the Datasensing AA1/CP-3A Sensors are a reliable choice for demanding environments.
