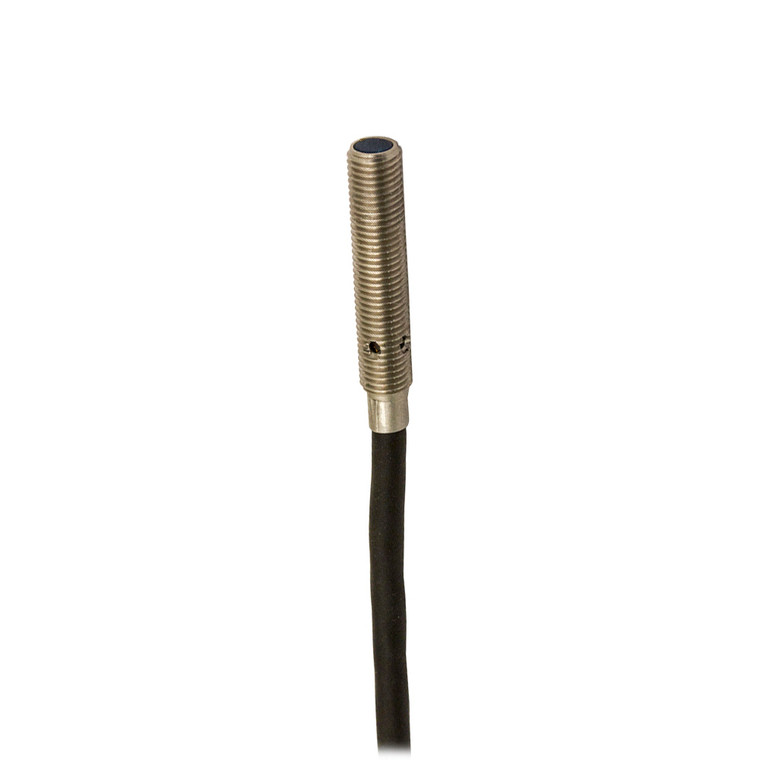

Datasensing AB1/CP-1A Sensors
Datasensing
$95.16
The Datasensing AB1/CP-1A Sensors are ultraminiaturized cylindrical inductive sensors designed for precision and reliability. With a nominal sensing distance of 0.6mm and an operating distance of 0 to 0.48mm, these sensors are ideal for detecting standard targets of 4x4mm FE360. They feature a PNP output type with a normally closed (NC) output function, ensuring efficient proximity detection. The sensors operate at a switching frequency of 3kHz and support an operating voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 100mA.
Built with a robust AISI303 stainless steel housing and a PBT active head, these sensors are designed to withstand harsh environments, offering IP67 protection against dust and water ingress. They are equipped with a 2m PUR cable for easy connectivity and feature yellow LED indicators for output state visibility. The sensors are shielded for flush mounting and come with short-circuit, reverse polarity, impulsive overvoltage, and inductive load protection.
With a compact M4 x 0.5 / L = 22mm dimension and a weight of 30g, these sensors are easy to install and maintain. They are approved by CE and UL, ensuring compliance with international standards, and are compatible with EMC standard IEC 60947-5-2. The sensors can operate in temperatures ranging from -25°C to +70°C, making them suitable for a wide range of industrial applications. Supplied with two M5x0.5 nuts, the Datasensing AB1/CP-1A Sensors are a reliable choice for precise and efficient sensing needs.
- Nominal sensing distance:
- 0,6mm
- Operanting distance:
- 0 0,48mm
- Standard target:
- 4x4mm FE360
- Correction Factor:
- copper: 0,23 ± 10% / aluminium: 0,26 ± 10% / brass: 0,31 ± 10% / stainless steel: 0,52 ± 10%
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M4 standard flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- 3kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 30g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PUR Cable
- Active Head Material:
- PBT
- Tightening torque:
- 1,5Nm
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- M4
- Approvals:
- CE UL
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M5x0.5
- Mechanical Protection:
- IP67
